Enclosure Subwoofer
Inquire NowDescription

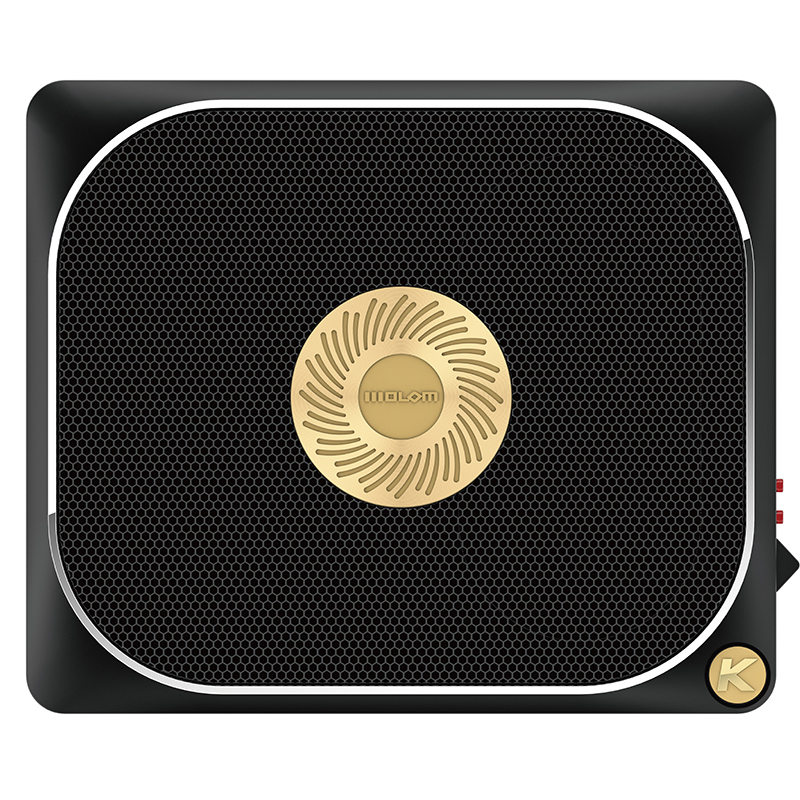

The Enclosure Subwoofer is the ultimate solution for car audio enthusiasts seeking powerful and high-quality sound. Designed specifically for car seats, this subwoofer incorporates a built-in power amplifier to deliver exceptional audio performance. With a woofer size of 180*230mm (7″*9″), it produces undistorted power of 150 watts and a maximum power output of 400 watts, ensuring an immersive listening experience. Its sensitivity rating of 86 dB and frequency response range of 45Hz to 200Hz provide deep bass and clear sound across all music genres.
Constructed with durable materials, the enclosure features a die-cast aluminum alloy box structure and a unique inverting secondary radiation design. The wave fiber and paper cone, complemented by a rubber edge, ensure longevity and superior sound quality. This subwoofer is designed for ease of installation in various car models and offers adjustable settings for optimal performance.
Specifications
| Attribute | Details |
|---|---|
| Woofer Size | 180*230mm (7″*9″) |
| Undistorted Power | 150 Watts |
| Maximum Power | 400 Watts |
| Sensitivity | 86 dB |
| Frequency Response | 45Hz – 200Hz |
| Impedance | 2 Ω |
| Magnet Type | Ferrite (Y35) |
| Cone Material | Wave Fiber + Paper + Rubber edge |
| Voice Coil Diameter | 50 mm |
| Box Material | Die-cast aluminum alloy |
| Box Structure | Inverting secondary radiation box |
| Product Size | 290*245*76.5 mm |
Additional Information
The rated output power is 200W*1 when the supply voltage is 14.4VDC and the resistance is 2Ω. The total harmonic distortion is only 0.08%, ensuring clear audio performance. This subwoofer features high-level input sensitivity of 300mV-10V and low-level input sensitivity of 100mV-3.5V with an input impedance of 10K. Additionally, it includes a low pass filter adjustable from 50Hz to 150Hz, a low volume increase adjustment of 0dB to +12dB, and phase adjustment from 0° to 180°. A fuse of 25A is also included for added protection.
