eps rock wool sandwich panel machine eps roof sandwich panel production line
Inquire NowDescription
The EPS Rock Wool Sandwich Panel Machine is designed for the efficient production of sandwich wall panels, specifically utilizing EPS, rock wool, and glass silk floss as core materials. This advanced machine boasts a Z-lock design, enhancing the structural integrity of the panels produced. With a production capacity ranging from 2 to 4.5 meters per minute, this machine is ideal for high-demand manufacturing environments. The production line is equipped with a PLC control system for easy operation and high precision, ensuring stable performance throughout the production process.
Specifications
| Attribute | Details |
|---|---|
| Coil Material | EPS, Rock Wool, Glass Silk Floss |
| Plate Thickness | 0.3 – 0.8 mm |
| Core Thickness | 20 – 300 mm |
| Production Capacity | 2 – 4.5 m/min |
| Total Power | About 30 KW |
| Weight | 25 tons |
| Dimensions | Length 35000 mm × Width 2500 mm × Height 2600 mm |
Additional Information
Processing Technique: The machine utilizes a composite decoiler, roll forming, laminating system, cutting system, and runout table for an efficient production process.
Terms of Payment: 30% down payment, 70% after inspection before delivery.
Delivery: Approximately 60 days after receipt of advance payment.
Service: Technicians can be sent to assist with setup, with costs covered by the buyer.
Warranty: 12 months limited warranty; parts are free during warranty but shipping is the buyer’s responsibility.
Note: Custom design options available based on specific requirements.

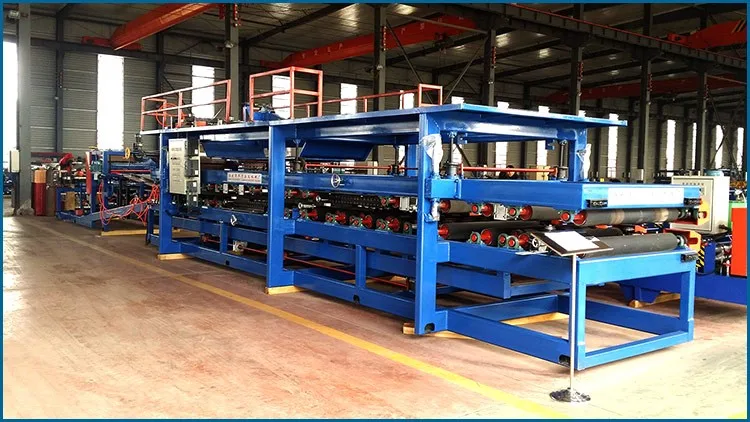

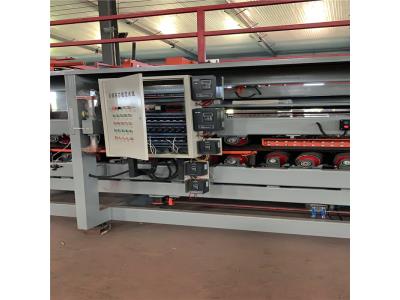

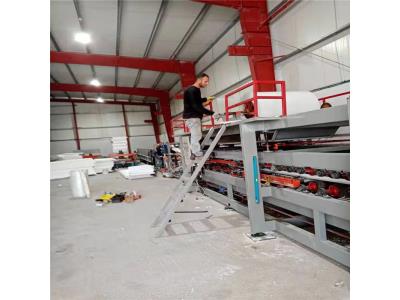

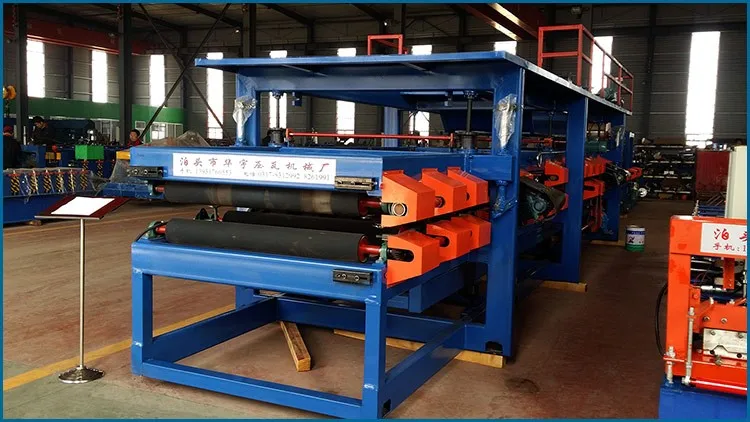

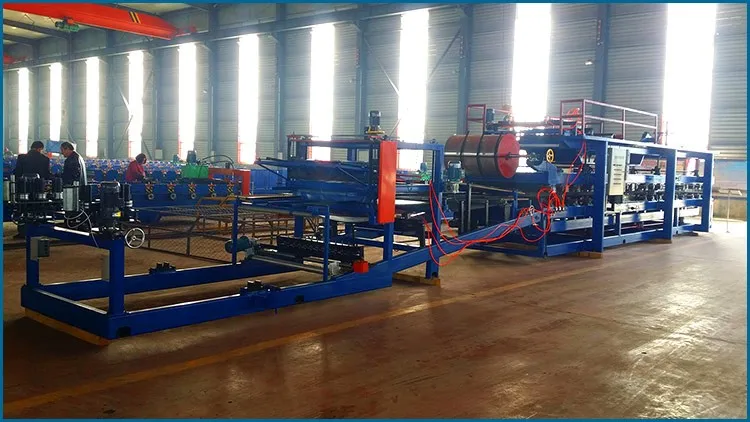

Product Pictures
