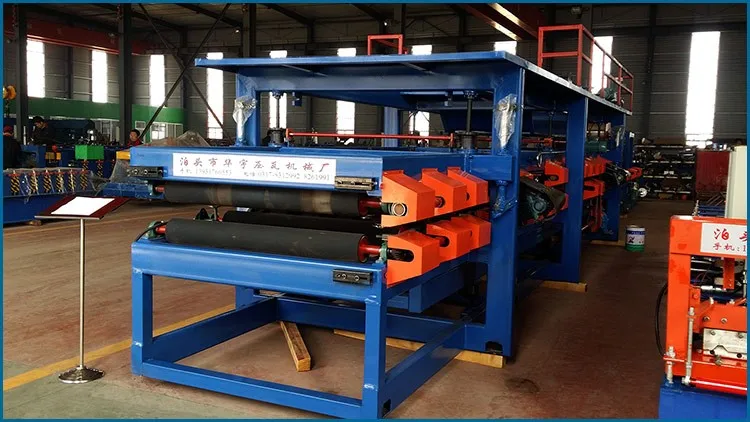

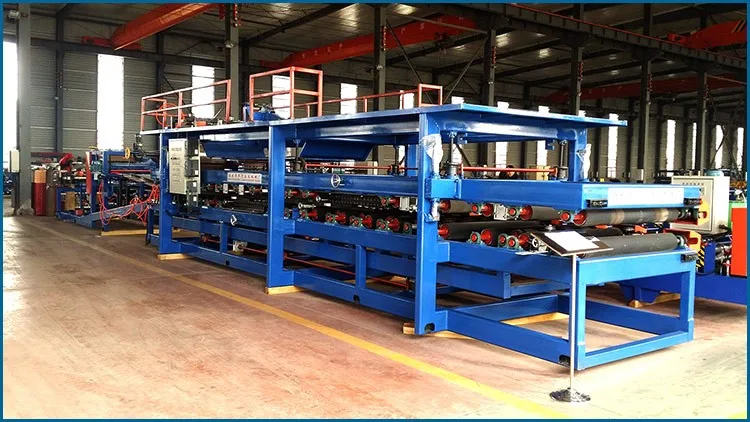

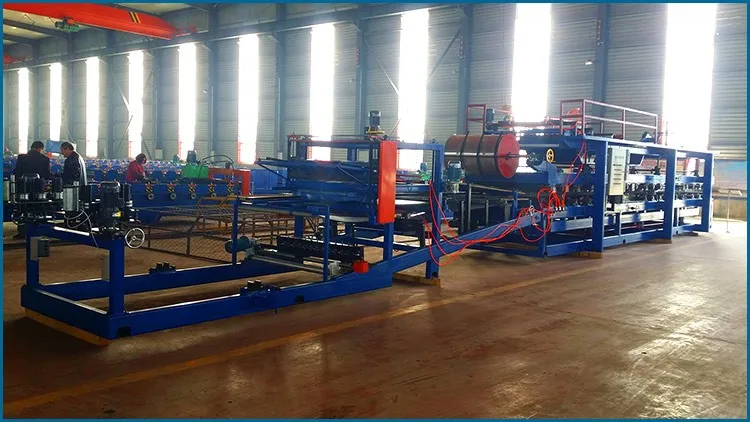

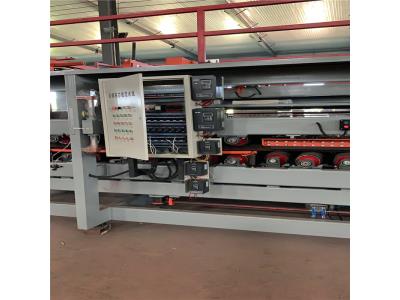

The Xinnuo automatic EPS sandwich roof and wall panel roll forming machine is a cutting-edge solution for the efficient production of sandwich panels. This versatile machine is designed to work with various materials such as EPS, rock wool, and glass silk floss, ensuring high-quality output for both roofing and wall applications. With its advanced PLC control system, it offers ease of operation, high precision, and stable performance. The machine can handle plate thicknesses ranging from 0.3mm to 0.8mm and core thicknesses from 20mm to 300mm, making it suitable for a wide range of construction needs.

Its production capacity varies between 2m/min to 4.5m/min depending on the adhesive used, while the machine itself has a total power requirement of approximately 30KW. Built to last, the entire production line measures about 35,000mm in length, 2,500mm in width, and 2,600mm in height, with a total weight of 25 tons.

Key processes include composite decoiling, roll forming, and laminating systems, along with a cutting system and runout table, ensuring a streamlined production workflow.

Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% to be paid after inspection by the buyer in the seller’s factory before delivery.

Delivery: 60 days after receipt of advance payment.

Service: Technician will be sent to your location for installation. The buyer is responsible for all costs including visa, roundtrip tickets, accommodation, and a daily salary of $60.

Warranty: 12 months limited warranty. Parts are free during warranty; however, the buyer is responsible for shipping costs.

Note: Custom designs are available upon request, and all plate types can be adjusted according to your specifications.
