EPS Sandwich Panel Production Line Chinese Manufacturer
Inquire NowDescription
The EPS Sandwich Panel Production Line is an advanced manufacturing system designed for producing high-quality sandwich panels using materials such as EPS, rock wool, and glass silk floss. This automated machine, known as the Xinnuo EPS Sandwich Roof & Wall Panel Roll Forming Machine, offers a range of features that enhance efficiency and precision in panel production.
With a robust construction, the production line includes a PLC control system, ensuring easy operation, high accuracy, and stable performance. It supports a variety of plate thicknesses and core dimensions, making it versatile for different construction needs. The production capacity can range from 2 to 4.5 meters per minute, depending on the glue used, while the total power consumption is approximately 30KW. This machine is an excellent choice for manufacturers looking to streamline their sandwich panel production process.
Specifications
| Attribute | Details |
|---|---|
| Coil Material | EPS, Rock Wool, Glass Silk Floss |
| Plate Thickness | 0.3 – 0.8 mm |
| Core Thickness | 20 – 300 mm |
| Production Capacity | 2 – 4.5 m/min |
| Total Power | About 30 KW |
| Weight | 25 tons |
| Dimensions | Length: 35000 mm × Width: 2500 mm × Height: 2600 mm |
Additional Information
Processing Technique: The production line includes processes such as Composite Decoiler, Roll Forming, Laminating System (ribbon, gelatinizing, heating up, compounding, crimping, notching, edge trimmer), Cutting System, and Runout Table.
Terms of Payment: 30% of the total contract value paid by T/T as down payment; the remaining 70% to be paid by T/T after inspection by the buyer at the seller’s factory before delivery.
Delivery: 60 days after receipt of advance payment.
Service: Technician will be sent to the buyer’s location for machine setup. The buyer will cover costs including visa, roundtrip tickets, accommodation, and a salary of $60/day.
Warranty: 12 months limited warranty. During the warranty period, parts are free but the buyer pays for shipping.
Note: Custom machine designs are available based on specific requirements.

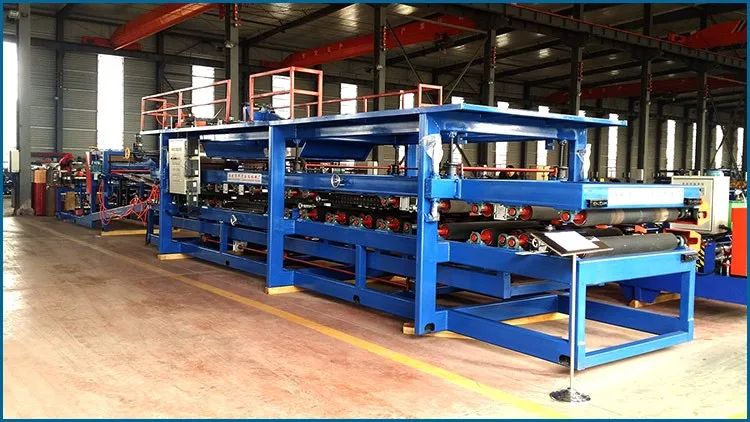

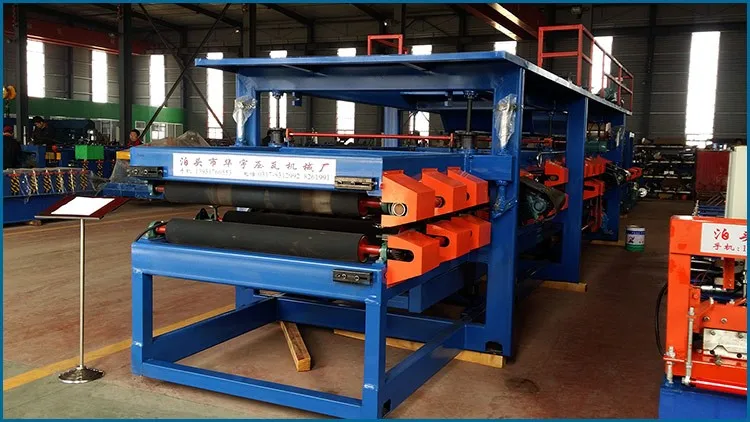

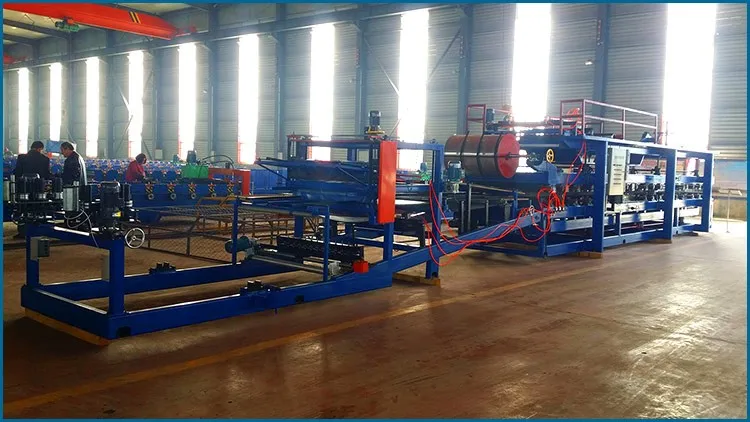

Product Pictures
