EPS sandwich panel roll forming machine
Inquire NowDescription
The EPS Sandwich Panel Roll Forming Machine is engineered for efficiency and precision in producing high-quality sandwich panels. This robust machine seamlessly combines top and bottom sheet coils with EPS using a specialized compound forming process. With a solid construction and user-friendly operation, it caters to a variety of applications in the construction and manufacturing industries. Key components include a profile forming machine, compound forming machine, cutting machine, and assisting equipment, all designed to optimize performance and minimize environmental impact.
Specifications
| Parameter | Details |
|---|---|
| Max Width | 1000-1200 mm |
| Max Thickness | 25 cm |
| Speed | 5-7 m/min |
| Main Power | 34.1 kW |
| Total Weight | 15-16 t |
| Input Size | 1200 mm |
| Dimensions | 9525 mm x 1450 mm x 1070 mm |
| Material Thickness Range | 0.3 mm – 0.8 mm |
| Number of Steps | 14-16 steps |
| Shaft Material and Diameter | ￠75 mm 45# steel |
Additional Information
Main Component Parts:
- Profile Forming Machine
- Compound Forming Machine
- Cutting Machine
- De-coiler
- Supporting Table
- Assistant Equipment

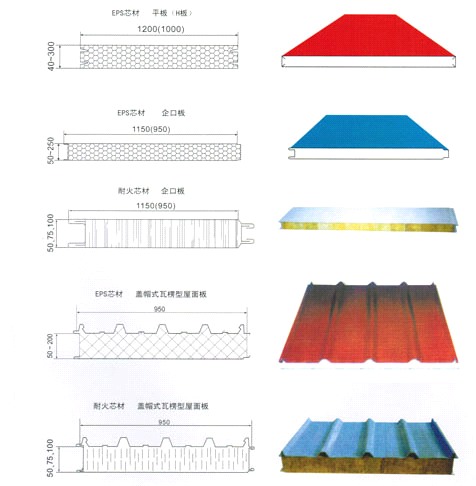

Profiles for Reference:
