eps sandwich panels machinery sandwich panel production line
Inquire NowDescription
The EPS Sandwich Panels Machinery Sandwich Panel Production Line is a state-of-the-art solution designed for the efficient production of high-quality sandwich panels. This advanced machinery is capable of processing various materials, including EPS and rock wool, ensuring versatility for different construction needs. With a robust design and innovative technology, it streamlines the production process while maintaining precision and stability.
This production line is equipped with a PLC control system for easy operation and features high production capacities ranging from 2 to 4.5 meters per minute, depending on the adhesive used. The line supports plate thicknesses from 0.3mm to 0.8mm and core thicknesses from 20mm to 300mm, making it adaptable to various specifications. Its total power requirement is approximately 30KW, and it has a significant weight of 25 tons, ensuring durability and reliability in production.
Specifications
| Attribute | Details |
|---|---|
| Coil Material | EPS, Rock Wool, Glass Silk Floss |
| Plate Thickness | 0.3 – 0.8 mm |
| Core Thickness | 20 – 300 mm |
| Production Capacity | 2 – 4.5 m/min |
| Total Power | About 30 KW |
| Weight | 25 tons |
| Dimensions | Length: 35000 mm x Width: 2500 mm x Height: 2600 mm |
Additional Information
Processing Technique: The line includes a Composite Decoiler, Roll Forming, Laminating System (ribbon, gelatinizing, heating, compounding, crimping, notching, edge trimming), Cutting System, and Runout Table.
Terms of Payment: 30% down payment via T/T, with the remaining 70% due after buyer inspection prior to delivery.
Delivery Time: 60 days after receipt of advance payment.
Warranty: 12 months limited warranty; parts are free during warranty, but shipping is at the buyer’s expense.
Note: Custom designs can be provided based on customer drawings, and all plate types can be modified to meet specific needs.

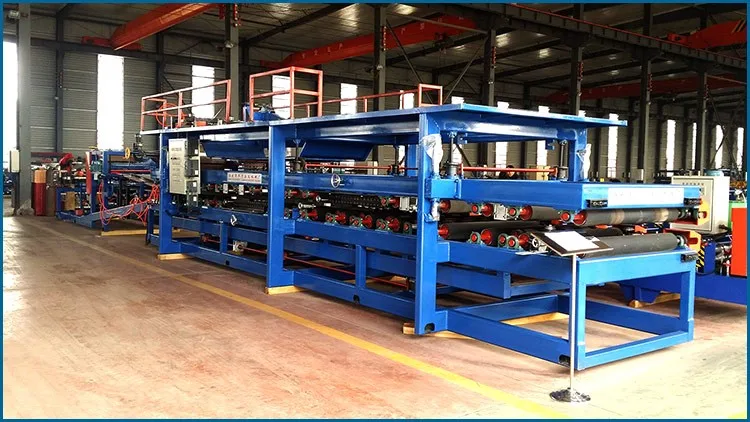

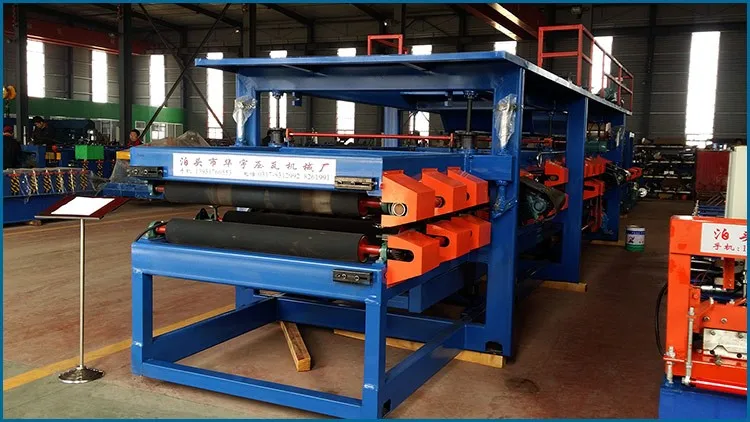

Product Pictures
