Description

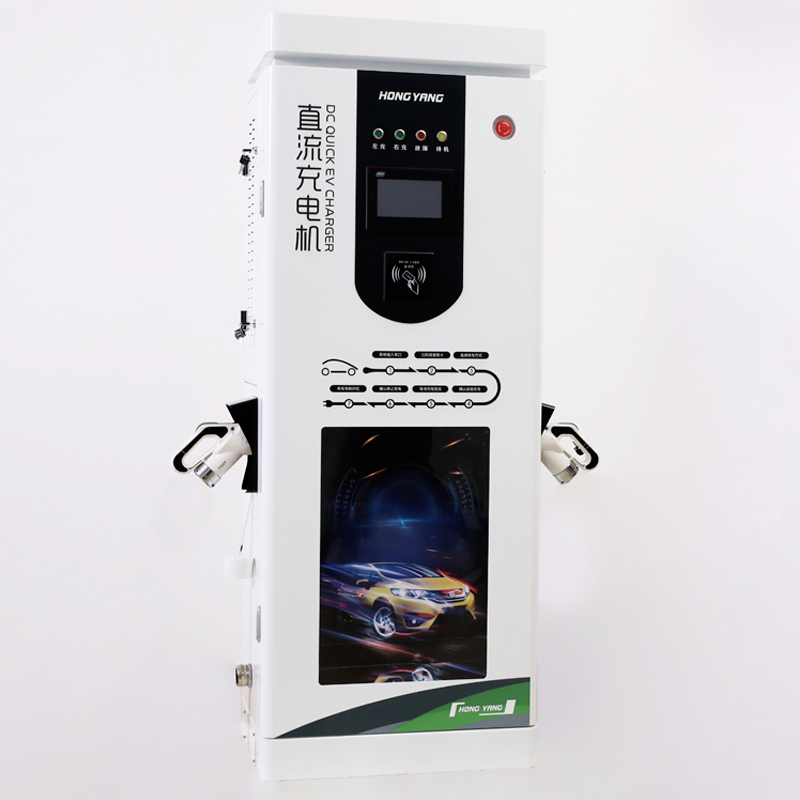

The HYDC 121-60 is a state-of-the-art, all-in-one DC charging solution designed for outdoor installations. With a robust IP54 protection rating, this dual-gun, 60kW charger is engineered to deliver exceptional performance for electric vehicles. The charger operates on a three-phase five-wire AC input and offers a flexible output voltage range from 200 to 750Vdc, with a maximum output of 60KW, ensuring rapid and efficient charging. Its modular design incorporates charging interfaces, human-computer interaction, communication, and billing systems into a single unit, simplifying installation, operation, and maintenance.
Specifications
| Attribute | Details |
|---|---|
| Input Voltage | 323-37Vac |
| Output Voltage | 200/750Vdc |
| Output Current | 100A |
| Voltage Accuracy | 5% |
| Current Accuracy | 5% |
| Power Consumption | 25W |
| Protection Grade | IP54 |
| Operating Temperature | -20℃ to +55℃ |
| Relative Humidity | 30%-90% |
| Efficiency | ≥95% |
| Dimension | 450x680x1600mm |
| Measurement Accuracy | Level I |
| Protection Functions | Over voltage, over current, short circuit, overheat, output reverse connection protection |
