Description

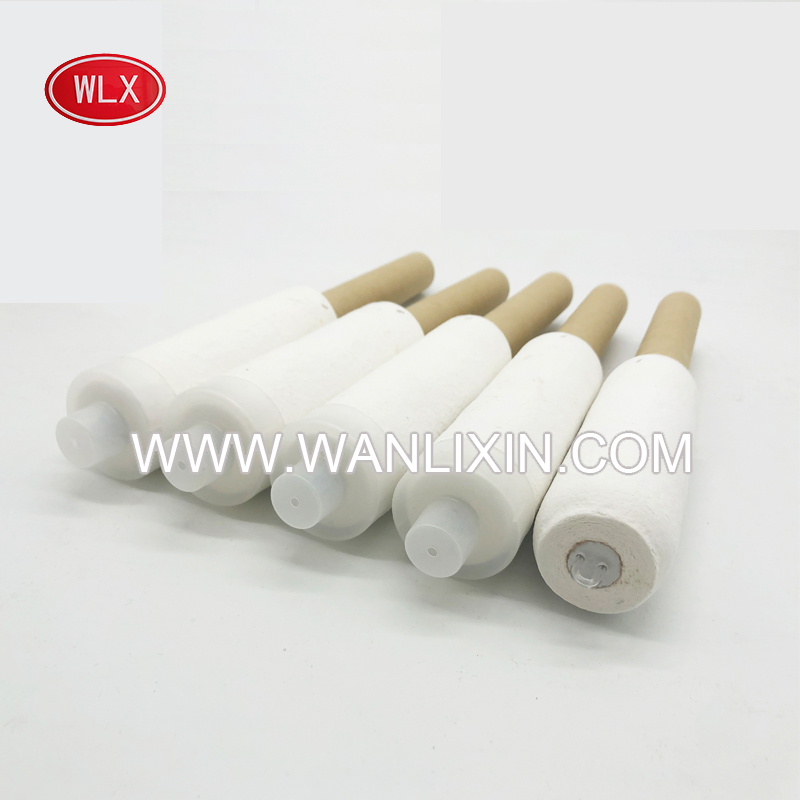

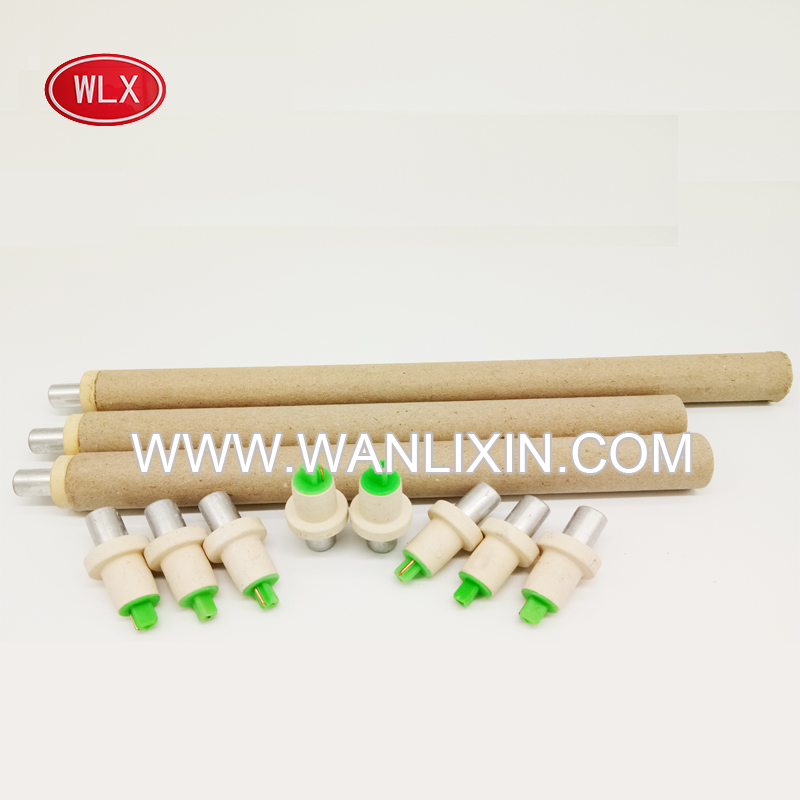

The Expensable Thermocouple Tip is a premium-quality, splash-proof thermocouple designed for precise temperature measurements in various industrial applications. Crafted from high-performance materials, this thermocouple tip ensures reliability and durability even in demanding environments. With its ability to withstand extreme temperatures, it provides accurate readings essential for quality control in metal processing and other critical temperature-dependent processes.
Specifications
| Name | Model | Type | Tolerance | Temperature Range | Max. Temperature | Response Time |
|---|---|---|---|---|---|---|
| Platinum-30% Rhodium/Platinum-6% Rhodium | KB-602/604 | B | ±5/±3℃ | 1500-1700℃ | 1800℃ | 4~6s |
| Platinum-10% Rhodium/Platinum | KS-602/604 | S | ±5/±3℃ | 1500-1700℃ | 1800℃ | 4~6s |
| Platinum-13% Rhodium/Platinum | KR-602/604 | R | ±5/±3℃ | 1500-1700℃ | 1800℃ | 4~6s |
| Tungsten-30%/Tungsten-Rhodium 25% | KW-602 | W | ±7℃ | 1500-1700℃ | 1800℃ | 4~6s |
Additional Information
Usage:
- Select the appropriate length of protective paper tube and thermocouple lance based on the measurement scope.
- Attach the fast thermocouple to the lance and calibrate the secondary instrument to zero before measuring.
- Insert the fast thermocouple into molten steel at a depth of 300-400mm, avoiding contact with the furnace wall. Limit exposure to less than 5 seconds.
- Replace the used thermocouple with a new one after each measurement, allowing a few minutes for preparation.
Transport and Storage:
Handle with care during assembly and transportation. Keep the products dry and store them in cases in environments with relative humidity under 80%. Ensure proper airflow and avoid harmful gases that may cause corrosion.
