Explosion-proof Tractor- QSD100Ex
Inquire NowDescription

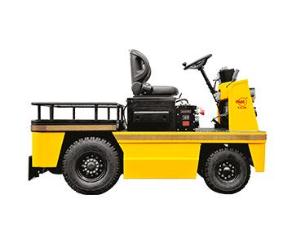

Introducing the **Explosion-proof AC Powered Tractor QSD100Ex**, engineered for safety and efficiency in hazardous environments. With a robust capacity of 10,000 kg, this tractor is ideal for use in petroleum and chemical production sites including military applications, paper manufacturing, and dangerous goods warehouses. The QSD100Ex is equipped with advanced explosion-proof features, ensuring compliance with international safety standards. Key safety elements include:
- Explosion-proof special power device
- Special sealed battery
- Explosion-proof AC frequency oil pump motor
- Explosion-proof controller and operating box
- Explosion-proof electric horn, lights, and signal lamps
- Explosion-proof traveling switch
This tractor not only prioritizes safety but also delivers superior performance, making it a reliable choice for demanding operational conditions.
Specifications
| Attribute | Unit | Value |
|---|---|---|
| Model | QSD100Ex | |
| Drive Type | Electric | |
| Operation Type | Seat | |
| Rated Traction Weight (60 minutes rated) | kg | 10,000 |
| Rated Traction (60 minutes rated) | N/kg | 2500/250 |
| Max. Traction (5 minutes rated) | N/kg | 10,000/1000 |
| Weight | kg | 2190 |
| Overall Length | mm | 2485 |
| Overall Width | mm | 1160 |
| Overall Height | mm | 1480 |
| Travel Speed, Laden | km/h | 6.5 |
| Travel Speed, Unladen | km/h | 12 |
| Min. Ground Height | mm | 138 |
| Min. Turning Radius | mm | 2200 |
Additional Information
For optimal performance, ensure regular maintenance and inspections of the tractor’s explosion-proof components. Always operate within the specified rated capacities to ensure safety and equipment longevity.
