Description

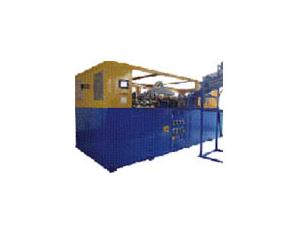

The Extrusion Blow Moulding Machine is a highly efficient and versatile piece of equipment designed for the production of hollow plastic parts. This machine is capable of producing a maximum product volume of 50 liters and operates at a high speed of 450 dry cycles per hour. It features a robust screw diameter of 90 mm with an L/D ratio of 22-30, which ensures seamless processing of various plastic materials. The machine is equipped with a powerful motor, with a screw drive power ranging from 37 to 45 KW, and a screw heating capacity of 7.3 to 9.1 KW across four heating zones, allowing it to cater to different production requirements. With a clamping force of 260-400 KN and the ability to accommodate molds of size up to 700*950 mm, this machine is ideal for industries requiring high-quality plastic products.
Specifications
| Specification | Unit | Value |
|---|---|---|
| Max. Product Volume | (L) | 50 |
| Dry Cycle | (pc/h) | 450 |
| Screw Diameter | (mm) | 90 |
| Screw L/D Ratio | (L/D) | 22-30 |
| Screw Drive Power | (KW) | 37-45 |
| Screw Heating Capacity | (KW) | 7.3-9.1 |
| No. of Heating Zones | (ZONE) | 4 |
| Output of HDPE | (kg/h) | 140-200 |
| Oil Pump Drive Power | (KW) | 30 |
| Clamping Force | (KN) | 260-400 |
| Platen Distance | (mm) | 450-1000 |
| Max. Size of Mold | (W*H)(mm) | 700*950 |
| Capacity | (L) | 6.6 |
| Max. Die Diameter | (mm) | Not specified |
Additional Information
- The machine is suitable for various types of plastic materials, including HDPE and PVC.
- It is designed for high-volume production, making it ideal for manufacturers looking to enhance productivity.
- Regular maintenance is recommended to ensure optimal performance and longevity of the machine.
