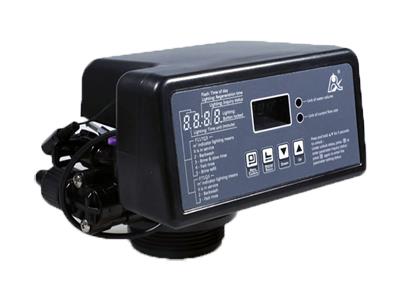

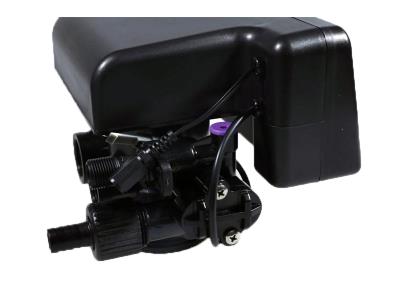

F117Q Automatic Multiport Softener Valves
Inquire NowDescription
The F117Q Automatic Multiport Softener Valves are designed to provide efficient water softening solutions for both residential and commercial applications. These valves are corrosion-resistant and feature multiple functions, including service, backwash, brine and slow rinse, brine refill, and fast rinse, ensuring optimal performance and longevity. The F117Q1 model operates on a timer clock basis, while the F117Q3 utilizes a meter type for precise water usage monitoring.
Specifications
| Attribute | Details |
|---|---|
| Model | F117Q1/Q3 (65503/65603) |
| Regeneration | Time clock type / meter type |
| Mount type | Top mount |
| Inlet/outlet | 3/4″ F |
| Drain | 3/4″ M |
| Brine line connector | 3/8″ M |
| Mounting base | 2.5″-8NPSM |
| Riser pipe | 1.05″ OD |
| Flow rate | 3m3/h |
| Filter tank | 6″–12″ |
| Water pressure | 0.15-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | Down-flow regeneration < 5 FTU |
| Power adapter | Input AC100~240V/50~60HZ Output DC12V/1.5A |
Additional Information
- Corrosion-resistant design ensures durability and longevity.
- Provides comprehensive water softening functions for versatile use.
