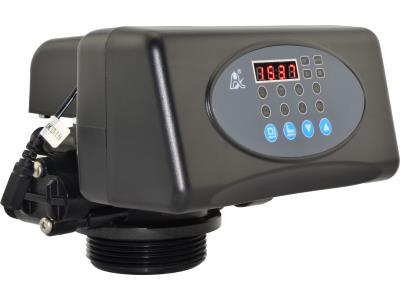

F65P Automatic Multiport Softener Valves
Inquire NowDescription
The F65P Automatic Multiport Softener Valves offer exceptional performance and durability in water treatment systems. Engineered to be corrosion-resistant, these valves provide essential functions including service, backwash, brine and slow rinse, brine refill, and fast rinse. Available in two variants, the F65P1 features a timer clock type, while the F65P3 utilizes a meter type for precise operation.
Specifications
| Attribute | Details |
|---|---|
| Model | F65P1/ P3 (64602/64602) |
| Regeneration | Time clock type / meter type |
| Mount Type | Top mount |
| Inlet/Outlet | 3/4″F |
| Drain | 1/2″M |
| Brine Line Connector | 3/8″M |
| Mounting Base | 2.5″-8NPSM |
| Riser Pipe | 1.05″OD |
| Flow Rate | 2m3/h |
| Filter Tank | 6″–12″ |
| Water Pressure | 0.15-0.6MPa |
| Water Temperature | 5-50℃ |
| Water Turbidity | Down-flow regeneration: < 5FTU |
| Power Adapter | Input AC100~240V/50~60HZ Output DC12V/1.5A |
| Application | Ion exchange equipment, water treatment system, RO pretreatment system |
Additional Information
- Corrosion-resistant design for enhanced durability.
- Multiple functionalities to accommodate various water treatment needs.
