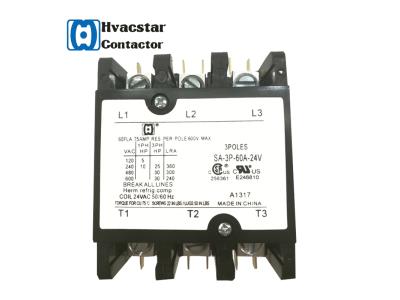

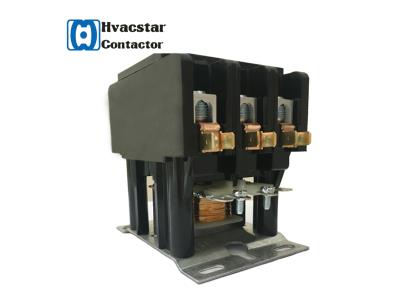

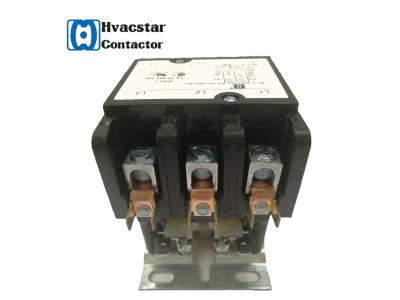

Factory Price HVAC Definite Purpose Brand Magnetic 3 Phase Electronic AC Contactor 3P 50Am
Inquire NowDescription
The Factory Price HVAC Definite Purpose Brand Magnetic 3 Phase Electronic AC Contactor is designed for commercial applications such as air conditioning, refrigeration, and lighting. With a robust 50 Amp capacity and operating voltage of 24-277V, this contactor is engineered to meet high performance and reliability standards. It features silver cadmium oxide contacts and offers multiple pole configurations, providing flexibility for various installations. Compact in size, it ensures easy integration into existing systems without compromising on performance.
Specifications

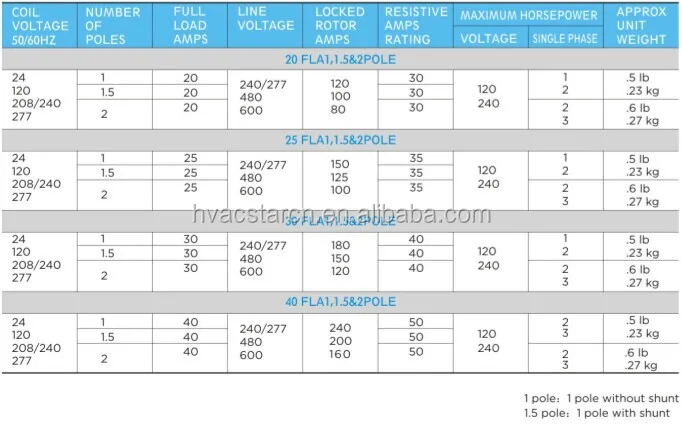

| Attribute | Details |
|---|---|
| Current Rating | 50 Amps |
| Voltage Range | 24-277 VAC |
| Contact Material | Silver Cadmium Oxide |
| Poles | 1, 1.5, 2, 3, 4 |
| Temperature Range | -40°F to +150°F / -40°C to +65°C |
| Termination Type | #10-32 screw, Box Lug |
| Certifications | UL Listed, CSA, S Mark, CCC Approved |

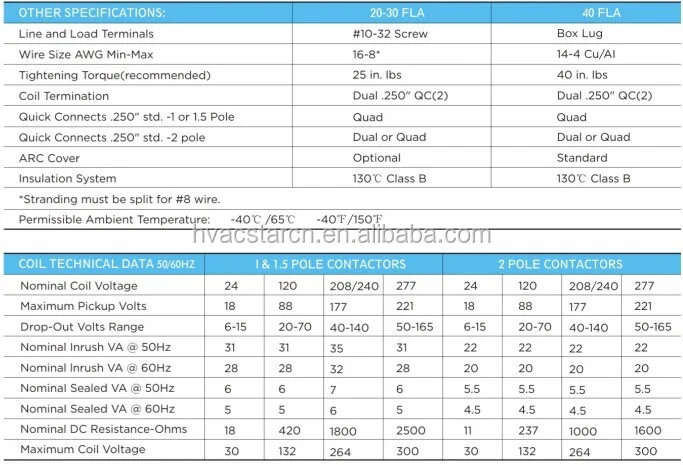

Additional Information
The SA series Definite Purpose Contactors are compact and versatile, offering three methods of wire connection: quick connect terminals, screws, or box lugs. These models are supplied with combination terminals that accept multiple types of screwdrivers for ease of installation. Auxiliary switches can also be provided with the contactors for enhanced functionality.
