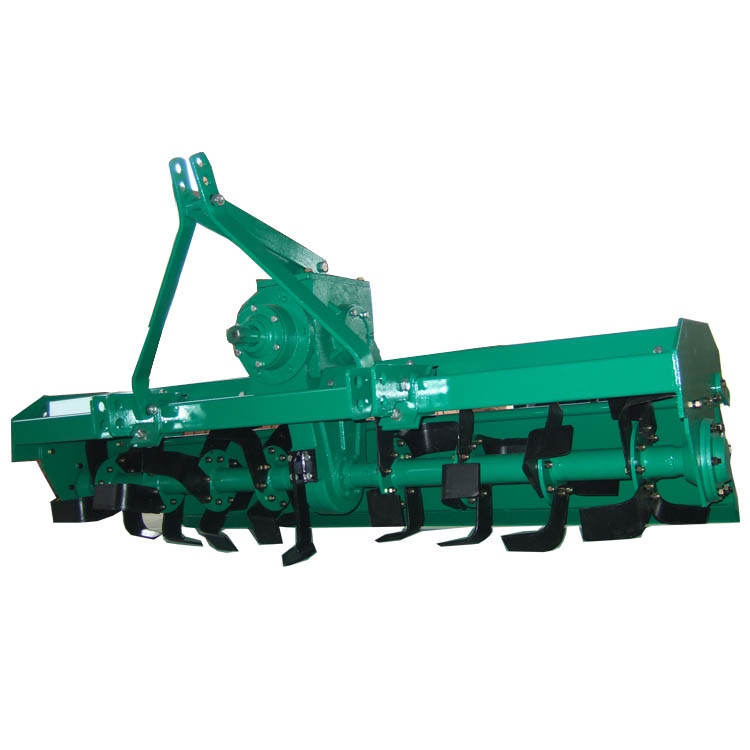

Farm Rotary Tiller Equipment
Inquire NowDescription
Farm Rotary Tiller Equipment is a powerful soil-working tool designed for tractors ranging from 12 to 160 horsepower. This versatile machine features wide blades that facilitate effective soil preparation by simultaneously performing stubble cleaning and rotary tillage. Known for its reliability and excellent performance, the rotary tiller is suitable for both dry and paddy fields, making it an essential asset for farmers looking to save time, labor, and costs.
Specifications
| Type | 1GQN-100 | 1GQN-115 | 1GQN-120 | 1GQN-125 | 1GQN-140 | 1GQN-150 | 1GQN-160 | 1GQN-180 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working width (mm) | 1000 | 1150 | 1200 | 1250 | 1400 | 1500 | 1600 | 1800 | |||||
| Working depth (mm) | Dry land | 8-14 | 12-18 | ||||||||||
| No. of blades | 22 | 26 | 30 | 34 | 38 | 50 | |||||||
| Weight (kg) | 185 | 190 | 195 | 200 | 205 | 230 | 255 | 320 | |||||
| Linkage | Standard three-point mounted | ||||||||||||
| Matched power (hp) | 12-15 | 15-18 | 15-18 | 18-20 | 20-25 | 25-30 | 30-40 | 50-55 | |||||
| Overall dimensions (mm) | 850*1050*950 | 900*1310*1000 | 900*1350*1000 | 900*1450*1000 | 900*1600*1000 | 900*1740*1000 | 900*1880*1000 | 1020*2056*1152 | |||||
Additional Information
For optimal performance, ensure that the rotary tiller is matched with the appropriate tractor horsepower and follow the recommended working depths for both dry and water land.
