FDG130
Inquire NowDescription

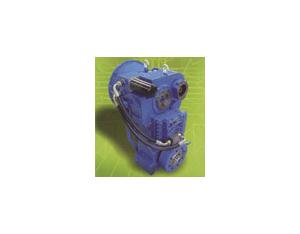

The FDG130 power shift gearbox is engineered for exceptional performance in heavy machinery, integrating a torque converter and a sub-box multi-position gearbox. This sophisticated design allows for a direct connection to the engine, utilizing a machine-type flange and cardan separated link for optimal torque conversion. Equipped with a gear selector, microcomputer control box, and electro-hydraulic control valve, the FDG130 enables effortless gear shifting and precise reversing operations, facilitating synchronous drive of the front gear axle. This gearbox is ideal for engineering machinery applications, particularly in wheeled model loaders and land levelers, ensuring reliable operation and efficiency in demanding environments.
Specifications
| Attribute | Details |
|---|---|
| Rated Power Input | 130 KW |
| Rated Rotate Speed Input | 2600 r/min |
| Center Distance of Input and Output | 500 mm |
| Gear Number | 6 Forward Gears / 3 Backward Gears |
| Total Weight | 430 KG |
