FG125T-5
Inquire NowDescription

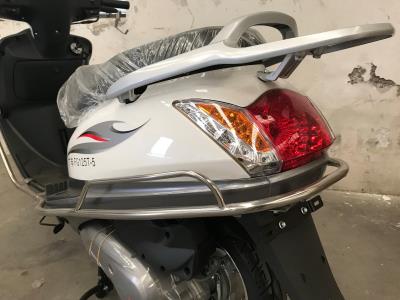

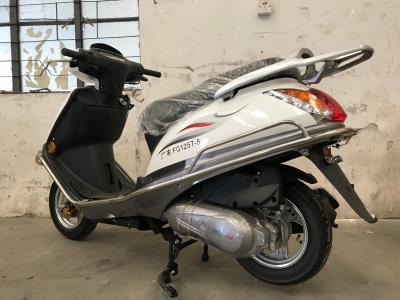

The FG125T-5 is a robust and efficient vehicle designed for versatility and performance. Featuring a single-cylinder, air-cooled, 4-stroke engine, this model ensures reliable power for various applications. With a maximum load capacity of 150 kg and a top speed of ≥80 km/h, it is perfect for both commercial and personal use. The FG125T-5 is built to last, with a sturdy frame and a comfortable design that enhances usability in diverse environments.
This vehicle is equipped with an electric/kick starting system and features advanced braking systems, including drum and disc brakes for both front and rear. Its compact dimensions of 1800×675×1105 mm and a wheelbase of 1255 mm make it agile and easy to maneuver, while its tire size of 3.50-10 provides excellent traction.
Specifications
| Attribute | Details |
|---|---|
| Brand | 广丰FGNCO |
| Engine Type | Single cylinder, Air cooled, 4 stroke |
| Dimensions (L×W×H) (mm) | 1800×675×1105 |
| Wheel Base (mm) | 1255 |
| Max Load Capacity (kg) | 150 |
| Fuel Type | RQ92 |
| Dead Weight (kg) | 102 |
| Max Speed (km/h) | ≥80 |
| Displacement/Power (ml/kW) | 124/5.6 |
| Brake Mode | F: Drum/disc, R: Drum/disc |
| Brake Operation Mode | F: Hand brake, R: Kick brake |
| Starting System | Electric/kick |
| Maximum Power | 5.6 kW / 7000 r/min |
| Max Torque | 7.8 N.m / 6000 rpm |
| Tire Size | F: 3.50-10, R: 3.50-10 |
Additional Information
The FG125T-5 is designed for effective loading with a capacity of 162 units in CKD form and 105 units in SKD form when loaded in a 40’HQ container. This makes it an efficient choice for businesses looking to optimize their logistics.
