Fiber satellite optical receiver
Inquire NowDescription

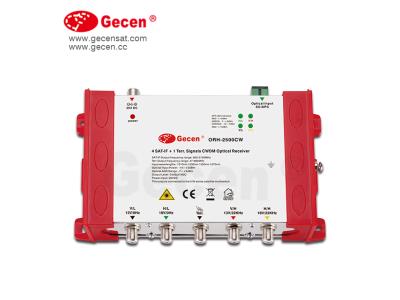

The Fiber Satellite Optical Receiver is an advanced device designed for seamless integration with GPON, EPON, and any FTTx PON technology. This receiver, model ORH-2500CW, is perfect for satellite optical systems, boasting a wide operating frequency range of 47-2150 MHz. With excellent linearity and flatness, it ensures optimal signal quality. The receiver employs a 1-core single-mode fiber for high return loss and features a built-in CWDM with high linearity photodiodes, making it a reliable choice for various satellite applications.
Designed for ease of installation, the compact receiver includes outputs connected to a 5IN series satellite multiswitch, a built-in optical AGC function, and a red LED power indicator. Experience superior performance with this powerful and efficient fiber satellite optical receiver.
Specifications
| Item | Value |
|---|---|
| Model | ORH-2500 |
| RF Connector | F-female |
| Optical Connector | SC/APC |
| Input Optical Wavelength | 1510nm, 1570nm |
| Input Optical Power | -14 ~ +3 dBm, -7 ~ +2 dBm @AGC |
| Output Impedance | 75Ω |
| Frequency Range | 47-2150 MHz |
| Output Level | ≥75 dBμV @AGC |
| AGC Stability | ±1 dB |
| Power Supply | 20 VDC |
| Power Consumption | <10 W |
| Dimensions | 195*135*45 mm |
Additional Information
- Compact and easy installation
- Red LED for power indication
- Built-in optical AGC function for stability
