Description

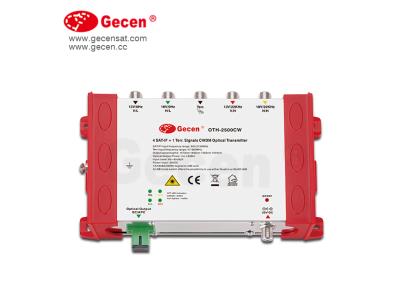

The Fiber Satellite Optical Transmitter OTH-2500CW is a versatile and efficient solution designed for satellite optical systems. It is compatible with any FTTx PON technology, including GPON and EPON, making it a valuable asset for modern telecommunications. The transmitter is engineered to operate across a wide frequency range of 47-2150MHz, ensuring excellent linearity and flatness for superior signal quality. Featuring a compact design, it allows for easier installation without compromising performance.
Key features include a built-in CWDM and a coaxial small package laser utilizing a single-core fiber with high return loss. The device supports 13/18V and 0/22KHz outputs for LNB operation, with a mode switch that accommodates both Quattro and QUAD LNB configurations. Up to 16 optical nodes can be distributed effectively, providing flexibility for various applications. A red LED indicator clearly shows power status, ensuring reliable operation.
Specifications
| Item | OTH-2500CW |
|---|---|
| RF Connector | F-female |
| Optical Connector | SC/APC |
| Power Supply | F-female |
| Input Optical Wavelength | 1510-1570 nm |
| Output Optical Power | 4x+3dB |
| Input Impedance | 75Ω |
| Frequency Range | 47-2150 MHz |
| Input Level | 75±10 dBμV |
| LNB Power Supply | 13/18 V |
| LNB Power Supply Current | 350 mA Max. |
| 22KHz Accuracy | 22±4 KHz |
| Power Supply | 20 VDC |
| Power Consumption | <8W |
| Dimensions | 195*135*45 mm |
Additional Information
- Compact size allowing for easier installation.
- Red LED for power indication enhances user experience.
