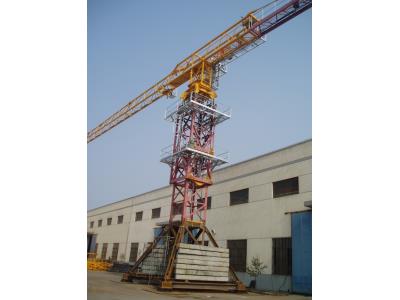

Flat Top Tower Crane TCP7021
Inquire NowDescription
The Flat Top Tower Crane TCP7021 represents cutting-edge technology in crane design. It is engineered for optimal performance, safety, and reliability, ensuring it meets global standards. The crane’s structure is meticulously designed using advanced three-dimensional software and force calculation techniques, allowing it to perform with exceptional efficiency.
Specifications
| Attribute | Value |
|---|---|
| Independent Height | 50 m |
| Max Height with Attachment | 200 m |
| Working Range (adjustable) | 30, 40, 45, 50, 55, 60, 65, 70 m |
| Min Working Range | 3.1 m |
| Max Lifting Capacity | 12 t |
| Tip Load @ 70m | 2.1 t |
| Hoist Mechanism Falls | 2 / 4 |
| Hoist Mechanism Lifting Capacity | 0-3 t / 0-6 t / 0-6 t / 0-12 t |
| Speed (m/min) | 0-85 / 0-42.5 / 0-42.5 / 0-21.2 |
| Motor | YZPBF250M1-4 45KW |
| Trolleying Mechanism Speed | 0-60 m/min |
| Trolleying Motor | YPBE132S-4 5.5KW |
| Slewing Mechanism Speed | 0-0.6 r/min |
| Slewing Motor | YTW132M-4 7.5KW |
| Climbing Speed | 0.5 m/min |
| Counterweight | 21.3 t |
| Mast Section Size (L x W x H) | 2 x 2 x 3 m |
| Working Temperature | -40 to +60 ℃ |
| Power Supply Requirement | 220 KVA for generator / 235 KVA for transformer booster |
| Cable Type | 50mm² (3+2, 5 cores) |
| Startup Voltage & Current | 380V × 0.95=361V, 260A |
| Rated Working Voltage & Current | 380V, 150A |
Additional Information
Loading diagrams and additional specifications can be provided upon request for specific configurations and operational requirements.
