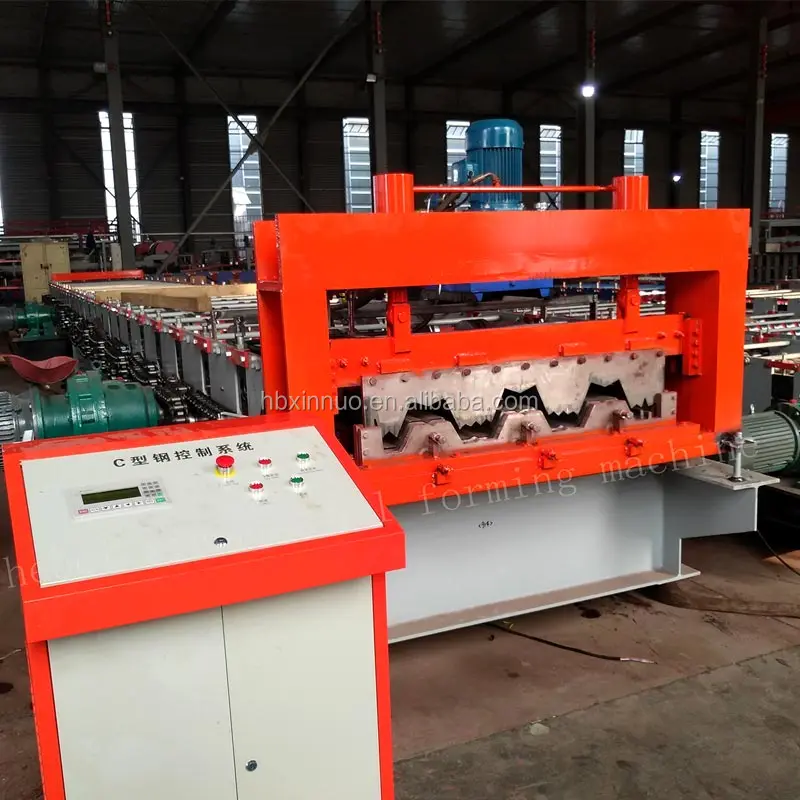

Floor deck roll forming machine floor deck steel panel production line machine
Inquire NowDescription
The Floor Deck Roll Forming Machine is an advanced production line designed for the efficient manufacturing of floor deck steel panels. This machine combines precision engineering with high productivity, making it an essential asset for construction and building projects. It is capable of processing a variety of steel plates, including color steel plates, with adjustable thickness ranging from 0.8 mm to 1.5 mm. The machine features a PLC control system for automated operations, ensuring consistent quality and high output rates of up to 82 meters per minute. With its robust structure and user-friendly design, this machine is perfect for manufacturers looking to enhance their production capabilities.
Specifications
| Attribute | Details |
|---|---|
| Suitable Steel Plate | Color Steel Plate |
| Thickness | 0.8 – 1.5 mm |
| Feeding Width | 1219 mm |
| Effective Width | 1000 mm |
| Production Speed | 8 – 82 m/min |
| Roller Stand | 24 rows |
| Diameter | 90 mm |
| Main Power | 18.5 kW |
| Pump Power | 15 kW |
| Side Panel of Machine | 20 mm |
| Roller Material | Carbon Steel 45# |
| Blade Material | Cr12, quenched |
| Control System | PLC Control |
| Voltage | 380V 50Hz 3 phases (changeable as needed) |
| Main Structure of the Machine | 450 mm H-Beam |
Additional Information
Workflow: Decoiler → Roll Forming → PLC System → Hydraulic System → Cutting → Output Table
Terms of Payment: 30% of the total contract value paid by T/T as down payment, with the remaining 70% due after inspection by the buyer in the seller’s factory before delivery.
Delivery: 30 days after receipt of advance payment.
