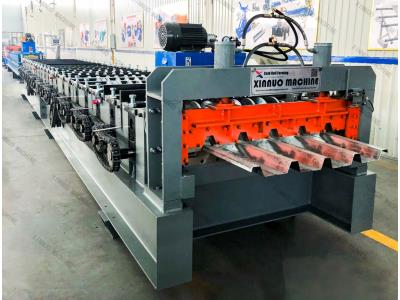

Floor deck roll forming machine floor deck steel panel production line machine
Inquire NowDescription
The Floor Deck Roll Forming Machine is a state-of-the-art production line designed for creating high-quality floor deck steel panels. This advanced iron sheet rolling machine is ideal for manufacturers looking to produce durable and reliable metal roofing solutions. With its robust design and efficient operation, it ensures precision in every panel, making it a valuable addition to any construction project.
Equipped with advanced technology, this machine can handle a variety of steel plate types and thicknesses, offering versatility to meet diverse production needs. Its user-friendly PLC control system facilitates easy operation, while the high production speed ensures quick turnaround times for large-scale projects.
Specifications
| Attribute | Details |
|---|---|
| Suitable Steel Plate | Color Steel Plate |
| Thickness | 0.8 – 1.5 mm |
| Feeding Width | 1219 mm |
| Effective Width | 1000 mm |
| Production Speed | 8 – 12 m/min |
| Roller Stand | 24 rows |
| Diameter | 90 mm |
| Main Power | 18.5 kW |
| Pump Power | 15 kW |
| Side Panel of Machine | 20 mm |
| Roller Material | Carbon Steel 45# |
| Blade Material | Cr12, quenched |
| Control System | PLC control |
| Voltage | 380V 50Hz 3 phases (changeable as needed) |
| Main Structure of Machine | 450 mm H-Beam |
Additional Information
Terms of Payment: 30% of the total contract value to be paid by T/T as down payment, with the remaining 70% due after inspection by the buyer in the seller’s factory before delivery.
Delivery: 30 days after receipt of advance payment.
Service: Technicians will be sent to your location for machine installation. The buyer is responsible for all costs, including visas, roundtrip tickets, accommodations, and a daily salary of $80.
Warranty: 12 months limited warranty.
