Floor deck roll forming machine floor deck steel panel production line machine
Inquire NowDescription

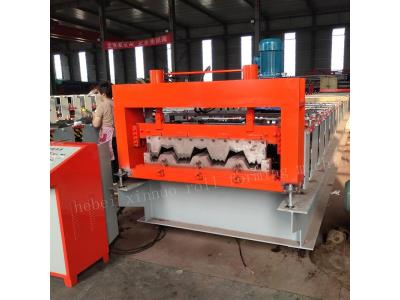

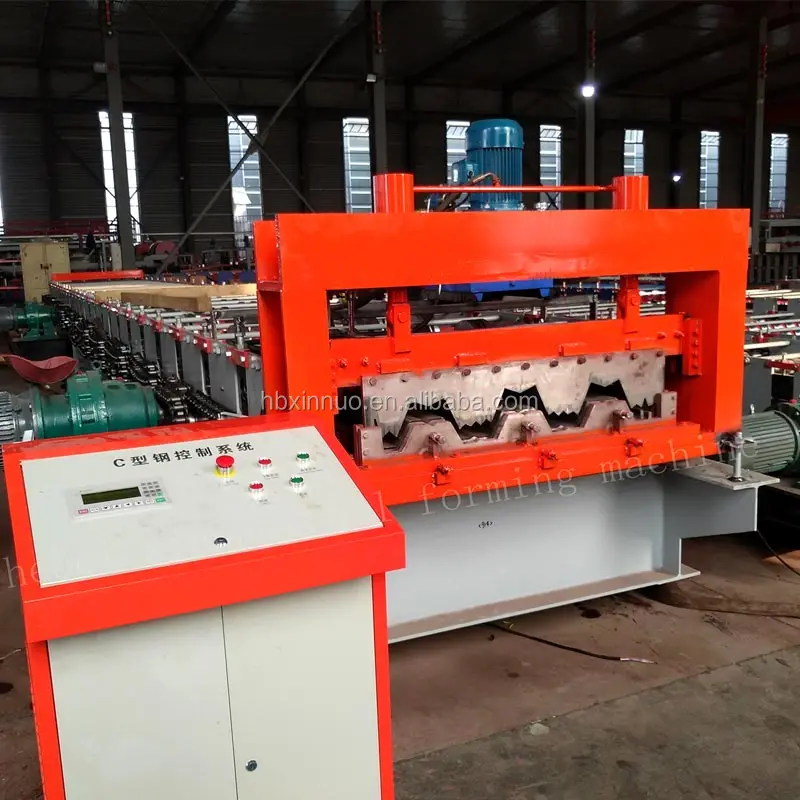

The Floor Deck Roll Forming Machine is a sophisticated piece of machinery designed for the efficient production of floor decking panels and steel roofing sheets. This machine utilizes advanced technology to roll form iron sheets into high-quality metal roofing products, making it an ideal choice for manufacturers in the construction industry. With a focus on durability and performance, this machine ensures consistent results while meeting the specific requirements of users.
Specifications
| Attribute | Details |
|---|---|
| Suitable Steel Plate | Color steel plate |
| Thickness | 0.8-1.5 mm |
| Feeding Width | 1219 mm |
| Effective Width | 1000 mm |
| Production Speed | 8-12 m/min |
| Roller Stand | 24 rows |
| Diameter | 90 mm |
| Main Power | 18.5 kW |
| Pump Power | 15 kW |
| Side Panel of Machine | 20 mm |
| Roller Material | Carbon Steel 45# |
| Blade Material | Cr12, quenched |
| Control System | PLC control |
| Voltage | 380V 50Hz 3phases (changeable as needs) |
| Main Structure of the Machine | 450 mm H-Beam |
Additional Information
Terms of Payment: 30% of the total contract value to be paid by T/T as down payment; the remaining 70% to be paid after inspection by the buyer in the seller’s factory before delivery.
Delivery: 30 days after receipt of advance payment.
Service: A technician will be sent to your country to fix the machine. The buyer is responsible for all costs, including visa, round trip tickets, and suitable accommodation, as well as a salary of $80/day for the technician.
Warranty: 12 months limited warranty.
Images
