Floor decking panel roll forming machine Floor tile sheet making machine
Inquire NowDescription

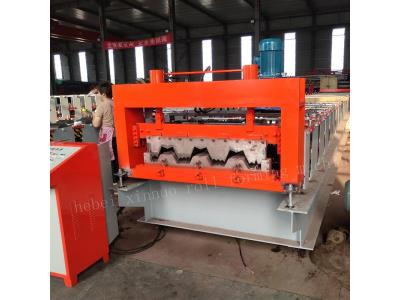

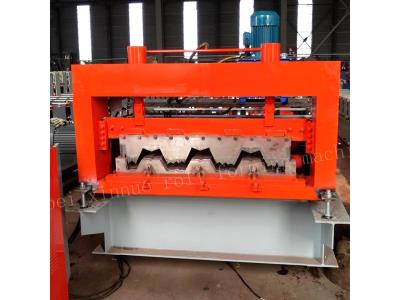

The Floor Decking Panel Roll Forming Machine is an advanced iron sheet rolling machine designed for efficient metal roofing and floor tile sheet production. This machine is engineered to meet the specific requirements of users, making it suitable for various steel plates. With its robust construction and high production speed, it ensures seamless operation and durability, delivering quality floor decking panels that meet industry standards.
Specifications
| Attribute | Details |
|---|---|
| Suitable Steel Plate | Color Steel Plate |
| Thickness | 0.8 – 1.5 mm |
| Feeding Width | 1219 mm |
| Effective Width | 1000 mm |
| Production Speed | 8 – 12 m/min |
| Roller Stand | 24 Rows |
| Diameter | 90 mm |
| Main Power | 18.5 kW |
| Pump Power | 15 kW |
| Side Panel of Machine | 20 mm |
| Roller Material | Carbon Steel 45# |
| Blade Material | Cr12, Quenched |
| Control System | PLC Control |
| Voltage | 380V 50Hz 3 Phases (Changeable as needed) |
| Main Structure of the Machine | 450 mm H-Beam |
Additional Information
Delivery: 30 days after receipt of advance payment.
Service: Technicians will be sent to your country to fix the machine. The buyer is responsible for all costs, including visa, roundtrip tickets, suitable accommodation, and a salary of $80/day.
Warranty: 12 months limited warranty.
Terms of Payment: 30% of the total contract value paid by T/T as a down payment; the remaining 70% to be paid by T/T after inspection by the buyer in the seller’s factory before delivery.
