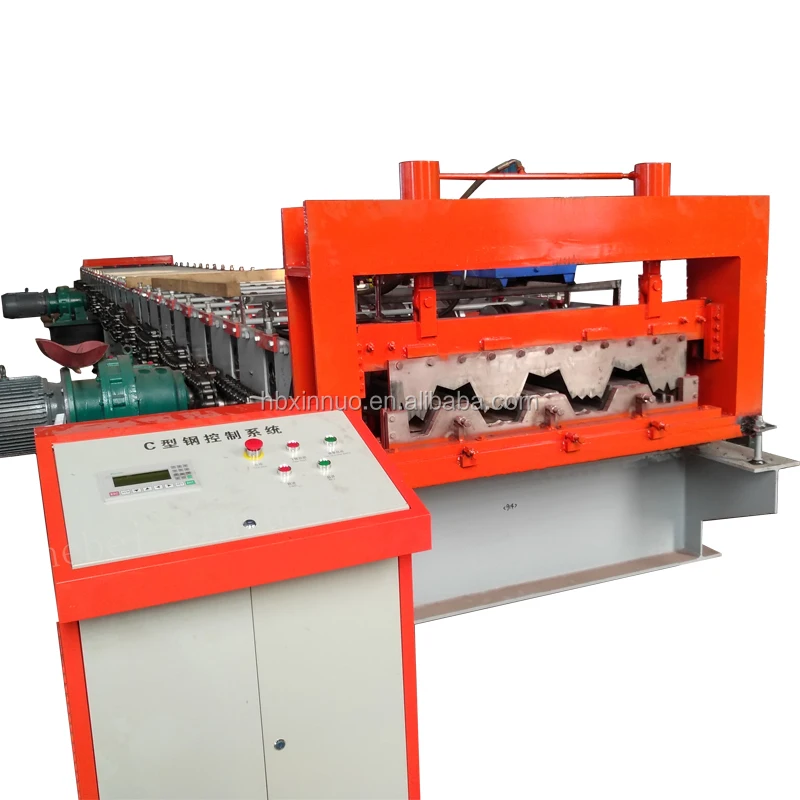

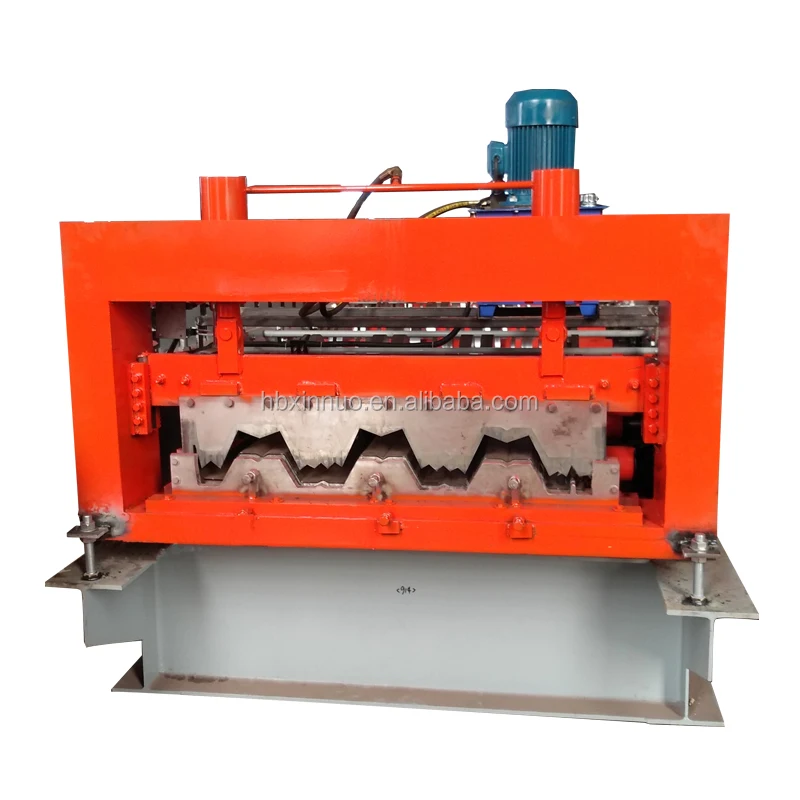

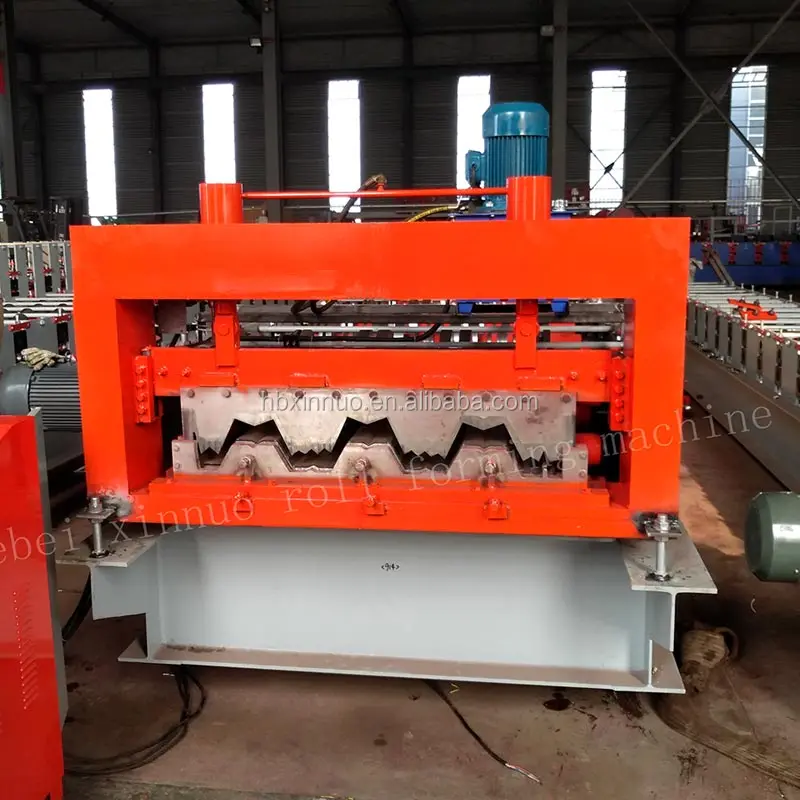

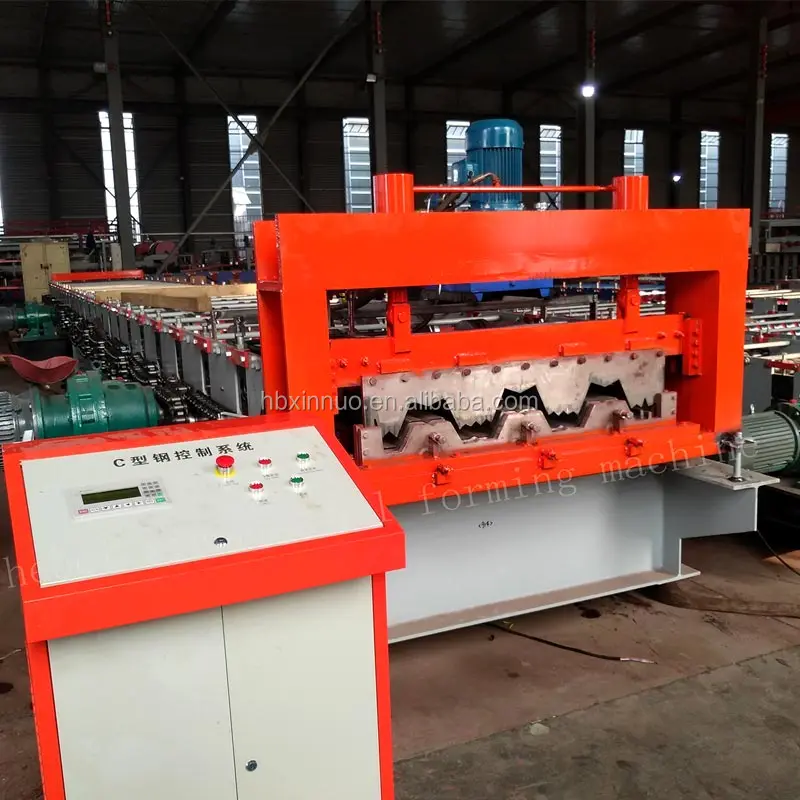

Floor Decking Panels Roll Forming Machine iron sheet rolling machine metal roofing machine
Inquire NowDescription
The Floor Decking Panels Roll Forming Machine is a state-of-the-art iron sheet rolling machine designed for the efficient production of metal roofing and floor decking panels. This robust machinery is engineered to meet diverse customer specifications, ensuring high-quality output for various construction needs. With a focus on reliability and performance, it features advanced PLC control for seamless operation, a hydraulic system for precise cutting, and a workflow that includes decoiling, roll forming, and output handling. Ideal for manufacturers seeking to enhance their production capabilities, this machine combines innovation with user-friendly features.
Specifications
| Attribute | Details |
|---|---|
| Suitable Steel Plate | Color Steel Plate |
| Thickness | 0.8 – 1.5 mm |
| Feeding Width | 1219 mm |

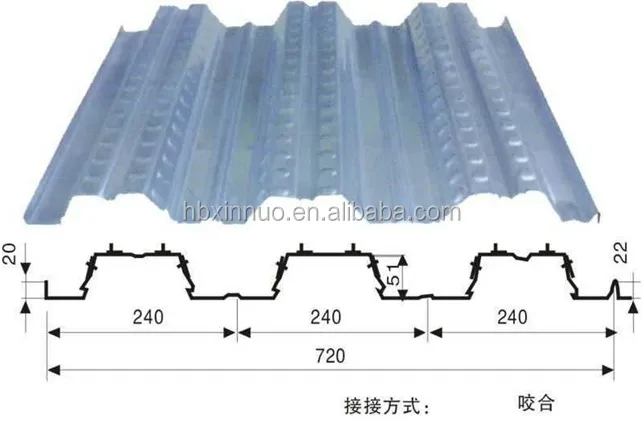

| Effective Width | 1000 mm |
| Production Speed | 8-12 m/min |
| Roller Stand | 24 Rows |
| Diameter | 90 mm |
| Main Power | 18.5 kW |
| Pump Power | 15 kW |
| Side Panel of Machine | 20 mm |
| Roller Material | Carbon Steel 45# |
| Blade Material | Cr12, Quenched |
| Control System | PLC Control |
| Voltage | 380V 50Hz 3 Phases (Changeable as needed) |
| Main Structure of the Machine | 450 mm H-Beam |
Additional Information

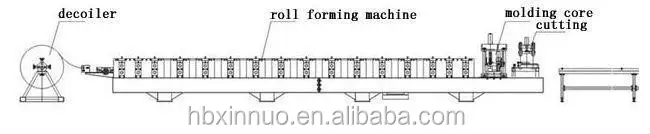

Workflow: Decoiler — Roll Forming — PLC System — Hydraulic System — Cutting — Output Table
Terms of Payment: 30% of the total contract value as down payment, the remaining 70% to be paid after inspection in the seller’s factory prior to delivery.
Delivery: 30 days after receipt of advance payment.
