Floor Decking Panels Roll Forming Machine iron sheet rolling machine metal roofing machine
Inquire NowDescription

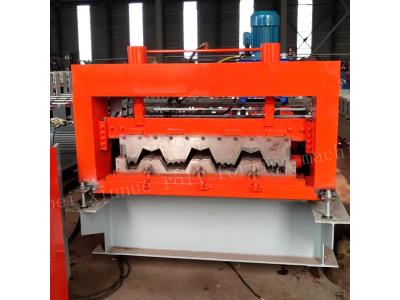

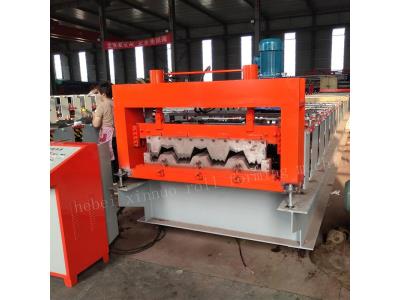

The Floor Decking Panels Roll Forming Machine is a high-performance solution designed for efficient production of metal roofing and decking panels. This advanced iron sheet rolling machine caters to various industrial needs, providing flexibility with technical parameters that can be tailored to user specifications. Built for durability and precision, it is capable of processing suitable steel plates with thickness ranging from 0.8 to 1.5 mm. With its PLC control system, this machine ensures ease of operation and consistent output quality.
Specifications
| Attribute | Details |
|---|---|
| Suitable Steel Plate | Color steel plate |
| Thickness | 0.8-1.5 mm |
| Feeding Width | 1219 mm |
| Effective Width | 1000 mm |
| Production Speed | 8-12 m/min |
| Roller Stand | 24 rows |
| Diameter | 90 mm |
| Main Power | 18.5 kW |
| Pump Power | 15 kW |
| Side Panel of Machine | 20 mm |
| Roller Material | Carbon Steel 45# |
| Blade Material | Cr12, quenched |
| Control System | PLC control |
| Voltage | 380V 50Hz 3 phases (changeable as needed) |
| Main Structure of the Machine | 450 mm H-Beam |
Additional Information
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the remaining 70% to be paid by T/T after inspection by the buyer in the seller’s factory and before delivery.
Delivery: 30 days after receipt of advance payment.
Service: We send technicians to your country to fix the machine. The buyer bears all costs including visa, round-trip tickets, and suitable accommodation. Additionally, the buyer should pay a salary of $80 USD/day.
Warranty: 12 months limited warranty.
