Description

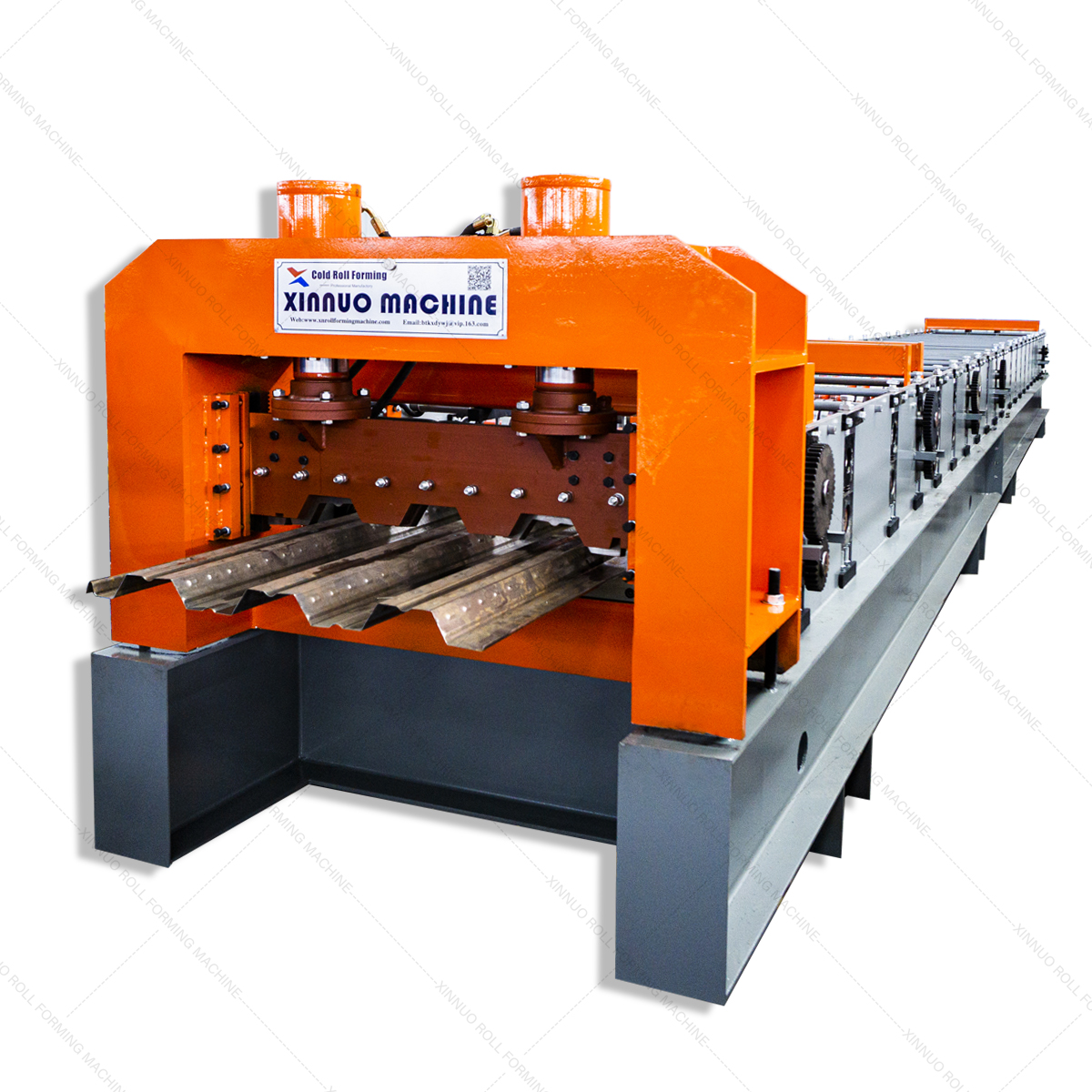

The Floor Production Decking Best Tile Making Machine is an advanced solution designed for creating high-quality metal floor decking. This machine is engineered to optimize production efficiency while ensuring durability and precision in tile making. With its cutting-edge technology, it caters to varying user requirements, making it an essential tool for any flooring production line.
Specifications
| Attribute | Value |
|---|---|
| Suitable Steel Plate | Color Steel Plate |
| Thickness | 0.8-1.5 mm |
| Feeding Width | 1219 mm |
| Effective Width | 1000 mm |
| Production Speed | 8-12 m/min |
| Roller Stand | 24 Rows |
| Diameter | 90 mm |
| Main Power | 18.5 kW |
| Pump Power | 15 kW |
| Side Panel of Machine | 20 mm |
| Roller Material | Carbon Steel 45# |
| Blade Material | Cr12, Quenched |
| Control System | PLC Control |
| Voltage | 380V 50Hz 3 Phases (Changeable) |
| Main Structure of the Machine | 450 mm H-Beam |
Additional Information
Warrantee: 12 months limited warranty
Delivery: 30 days after receipt of advance payment
Service: Technician available for machine setup and maintenance; buyer covers travel costs.
Terms of Payment: 40% down payment, 60% upon inspection before delivery.
