Floor Production decking Best Tile Making Machine best price Tile making machine for metal
Inquire NowDescription

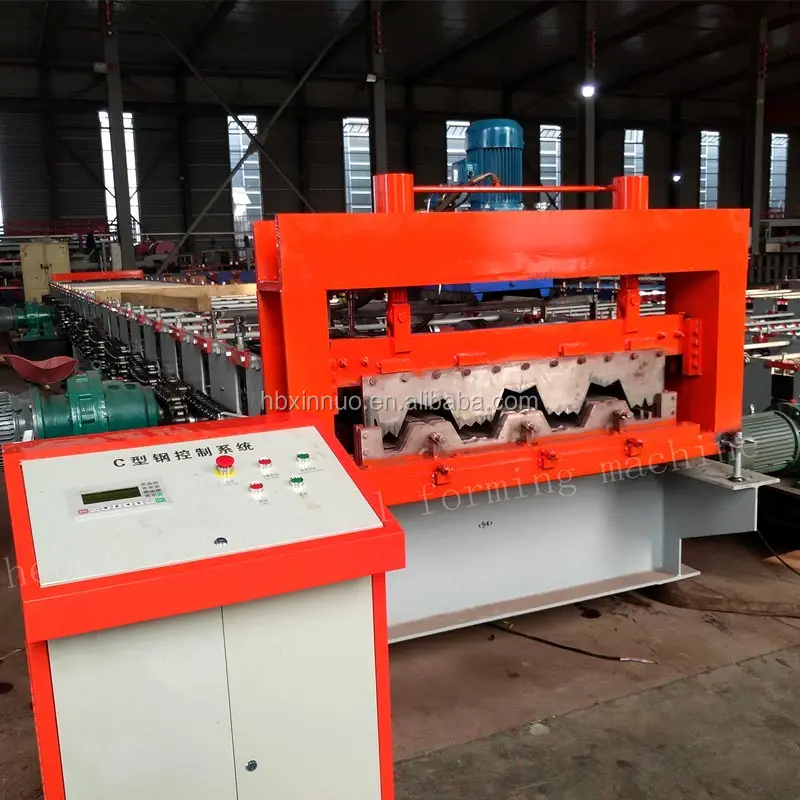

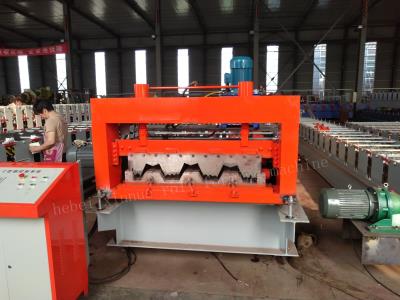

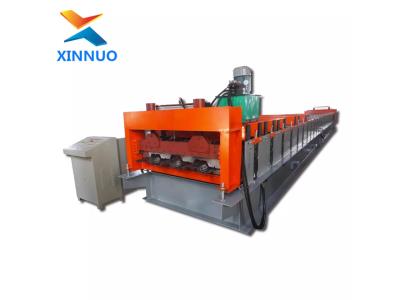

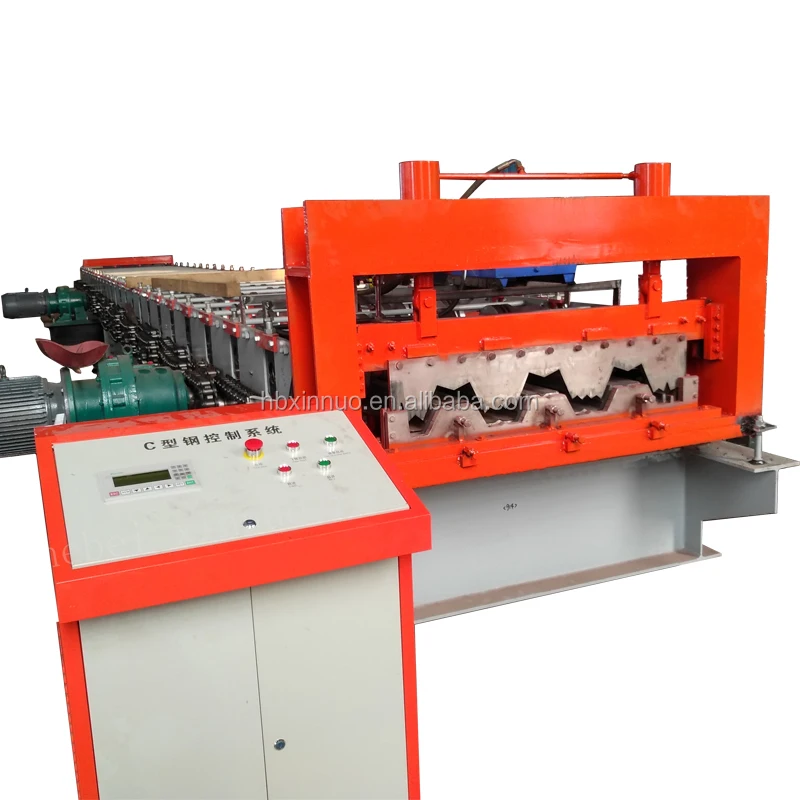

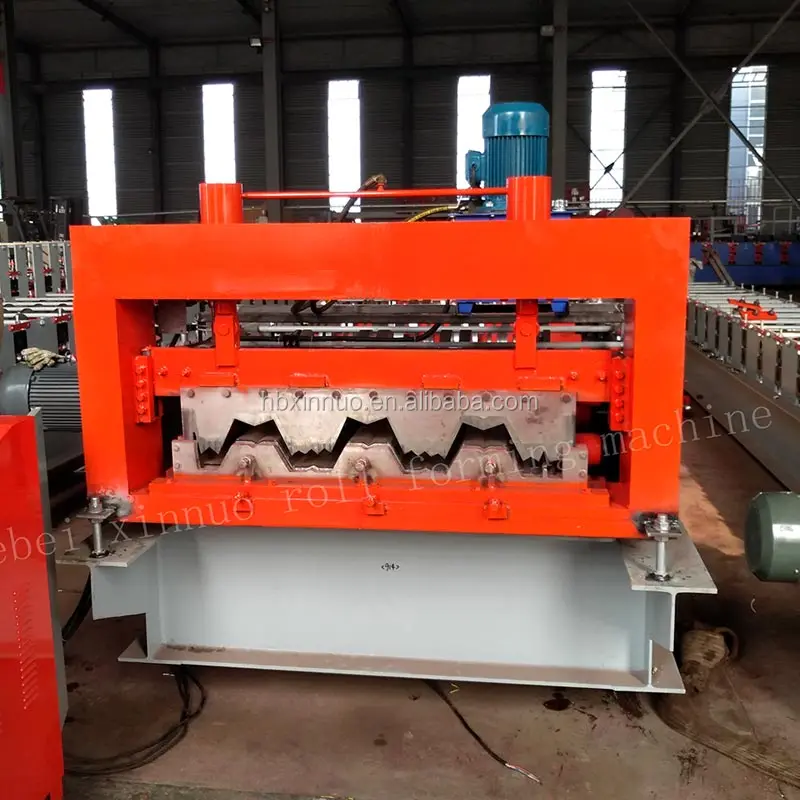

Introducing the Floor Production Decking Best Tile Making Machine, a premier solution for producing high-quality metal floor decking. This machine is designed for efficiency and performance, making it an essential tool for manufacturers looking to enhance their production capabilities. With its advanced engineering and customizable features, it meets the specific requirements of users, ensuring optimal results in tile-making processes.
Specifications
| Attribute | Details |
|---|---|
| Suitable Steel Plate | Color Steel Plate |
| Thickness | 0.8-1.5 mm |
| Feeding Width | 1219 mm |
| Effective Width | 1000 mm |
| Production Speed | 8-12 m/min |
| Roller Stand | 24 Rows |
| Diameter | 90 mm |
| Main Power | 18.5 kW |
| Pump Power | 15 kW |
| Side Panel of Machine | 20 mm |
| Roller Material | Carbon Steel 45# |
| Blade Material | Cr12, quenched |
| Control System | PLC Control |
| Voltage | 380V 50Hz 3 Phases (changeable as needs) |
| Main Structure of the Machine | 450 mm H-Beam |
Additional Information
Terms of Payment: 30% of the total contract value is required as a down payment via T/T, with the remaining 70% due after inspection in the seller’s factory prior to delivery.
Delivery: The machine will be delivered 30 days after receipt of the advance payment.
Service: A technician will be sent to your location for setup and maintenance. The buyer is responsible for all related costs, including visa, round-trip tickets, accommodation, and a salary of $80 per day for the technician.
Warranty: 12 months limited warranty.
