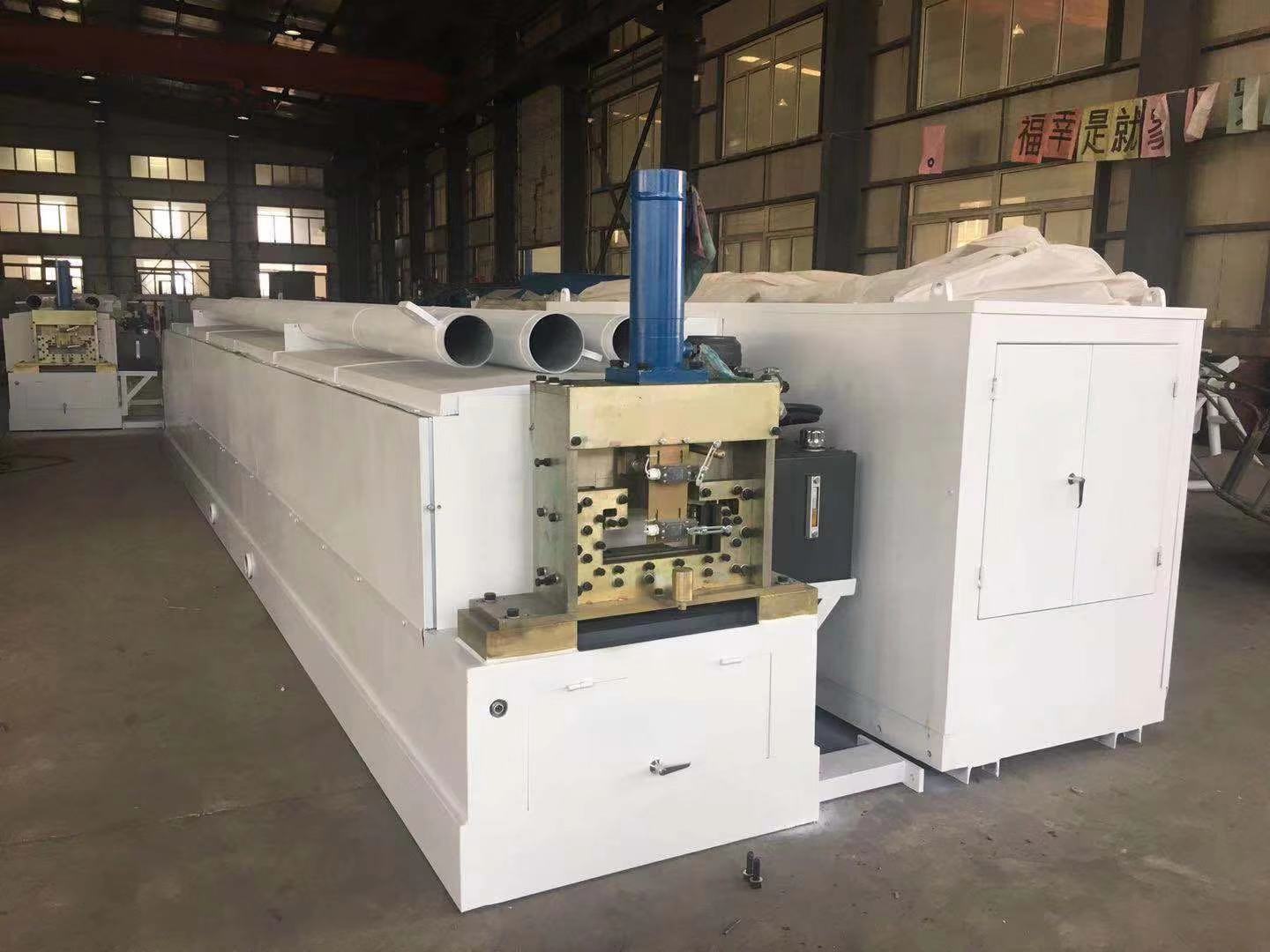

Floor type arch long sheet roll forming machine
Inquire NowDescription

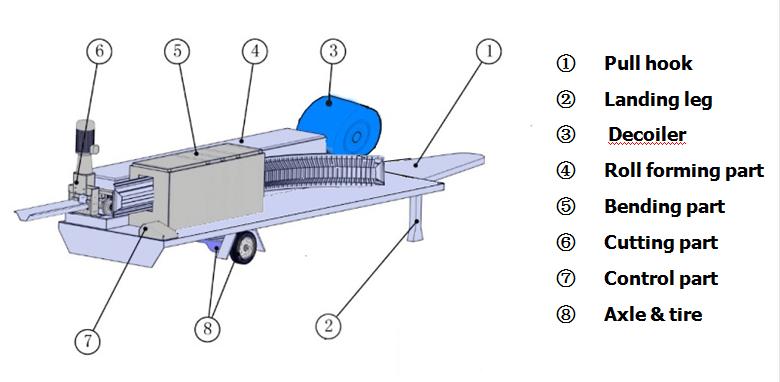

The Floor Type Arch Long Sheet Roll Forming Machine is a robust and efficient solution for on-site production, designed to reduce costs while maintaining high quality. Ideal for mid-scale and small-scale construction projects, this machine excels in creating structures for factories, warehouses, garages, gymnasiums, exhibition centers, cinemas, and theatres. This innovative machine features a unique trailer design equipped with superior axles, akin to car axles, ensuring greater durability and longevity compared to standard straight shaft options offered by other suppliers.
Specifications
| Feature | Details |
|---|---|
| Production Type | BH-600-305 |
| Dimension | Straight part: 7650*920*1200mm; Curving part: 2600*1400*1400mm |
| Total Weight | About 7 Ton |
| Feeding Width | 600mm |
| Effective Width | 305mm |
| Using Rate | 50.8% |
| Thickness | 0.5-1.5mm |
| Groove Depth | 109mm |
| Bending Leaf | 10mm Thickness, Processed By CNC |
| Cutting Blade | 12CrMov Material, Heat Treatment |
| Cutting Type | Mechanical/Hydraulic Cutting |
| Forming Type | Roll-Formed and Length-Set Cutting |
| Controlling System | PLC |
| Power | Total Motor Power: 15.2KW Roll Forming Main Motor Power: 5.5KW Bending Power: 3.0KW+1.5KW Cutting Power: 3.0KW |
| Seaming Power | 1.1KW+1.1KW |
| Roller Material | 45# High-Quality Steel, Quenched HRC 55~65, Hard Chrome Plating |
| Shaft Material | 45# High-Quality Steel, Galvanized |
| Stand of Molding | 13+1 Steps |
| Working Speed | Forming Part: 15m/min Bending Part: 13m/min Seaming Part: 6m/min |
| Suitable Project | 4~28m |
| De-Coiler | Inner-Diameter of Coil: 450mm ~ 650mm Max Width of Coil: 600mm ~ 620mm Load: 10Ton |
Additional Information
For optimal performance, ensure the machine is maintained regularly and operated by trained personnel. This machine is designed for versatility in various construction environments, facilitating efficient production of long sheet profiles.
