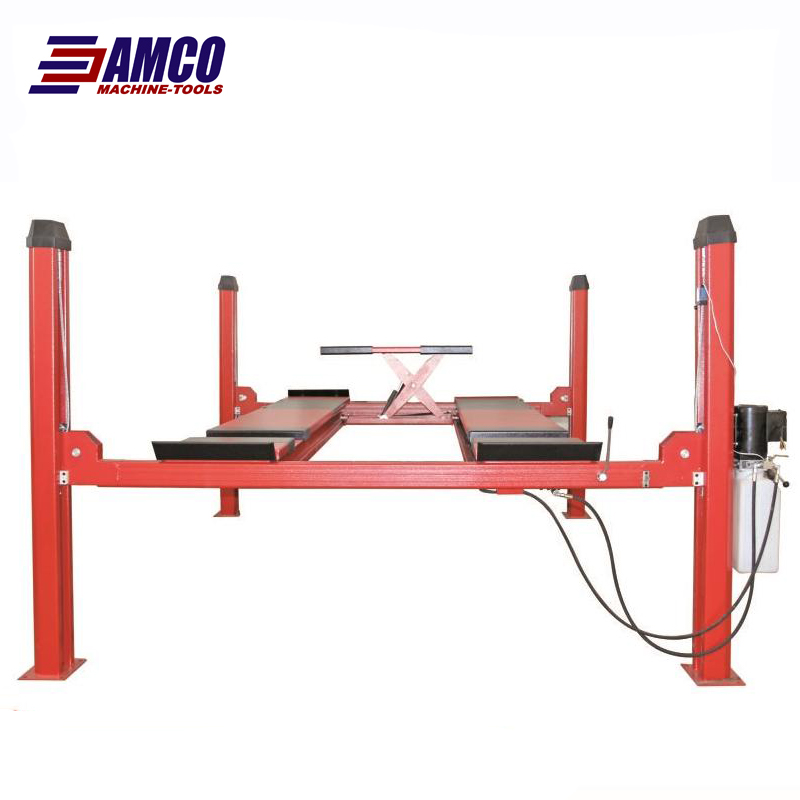

Four Post Lifter
Inquire NowDescription
The Four Post Lifter is an innovative solution designed for safe and efficient vehicle lifting. It features an automatic stop at the highest position, ensuring enhanced safety during operation. With a manual release accessible from one side, it offers convenience for users. The lifter is equipped with a mechanical safety latch located in all four columns, providing an additional layer of security.
This versatile lifter allows for adjustable distances between the two platforms, making it suitable for vehicles of varying widths. An anti-surge valve included in the hydraulic joint protects against potential hazards, such as oil hose ruptures. Additionally, a relief valve safeguards against overloading, while a valid protection system is in place for steel cable failures.
For improved usability, the Four Post Lifter comes with a front wheel baffle and antiskid pattern front ramps. The 24V low-voltage safe control system minimizes the risk of unexpected injuries. Ideal for four-wheel alignment, it also offers the option of a secondary lift, either pneumatic or manual, to enhance its functionality.
Specifications
| Model | Lifting Capacity | Secondary Lifting Height | Power Supply | Motor Power | Weight |
|---|---|---|---|---|---|
| C435 | 4000Kg | 1500mm | 220V/380V | 3 Kw | 1200Kg |
Additional Information
- Automatic stop in the highest position for safety.
- Manual release from one side for convenience.
- Mechanical safety latch in four columns for enhanced security.
- Anti-surge valve and relief valve included for protection against malfunctions.
- Front wheel baffle and antiskid pattern ramps for better stability.
- 24V low-voltage safe control system to prevent injuries.
- Optional secondary lift available (pneumatic or manual).
