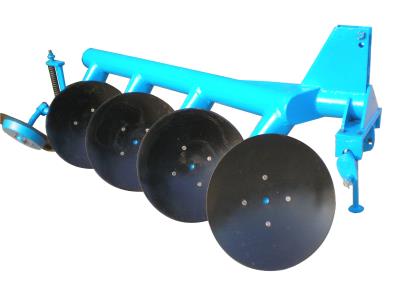

four-wheel tractor matched round pipe disc plough
Inquire NowDescription
The mounted disc plough is specifically designed for four-wheel tractors, providing an efficient solution for ploughing diverse land types. Its unique round frame enhances stability and maneuverability during operation. The revolving discs effectively cut through soil, tackling weeds, stems, and even frictional soil with small bricks. Ideal for farmers looking to minimize working resistance, this plough excels in cutting off roots and stems with ease.
Advantages:
- Prevents grass winding, blockage, and hip building-up.
- Facilitates easy cutting of stems and roots.
- Reduced working resistance for efficient operation.
- Optimized for use with four-wheel tractors.
- Robust round frame design enhances durability.
Specifications
| Model | 1LYX-230 | 1LYX-330 | 1LYX-430 | 1LYX-530 | |
|---|---|---|---|---|---|
| Working width | mm | 600 | 900 | 1200 | 1500 |
| Working depth | mm | 250~300 | |||
| Q’ty of disc | 2 | 3 | 4 | 5 | |
| Total weight | kg | 300 | 440 | 490 | 550 |
| Matched power | hp | 40 | 60 | 100 | 130 |
| Linkage | Three-point suspension II type | ||||
Additional Information
No additional information is available.
