Description

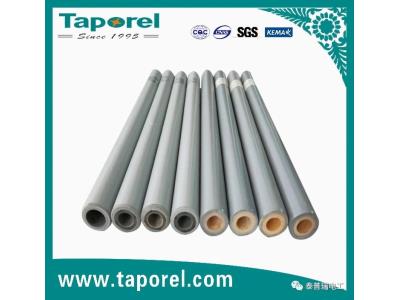

The FRP Rod is a state-of-the-art, heat curable electrical insulating rod designed for high-performance applications. Utilizing a vacuum pressure injection process, this composite insulator rod is crafted from synthetic resin and alkali-free glass fiber yarn, providing superior strength and insulation properties. Its production method involves impregnating glass fiber yarn with an epoxy resin matrix, which is then processed through continuous pultrusion to achieve a precise diameter.

Notable for its lightweight design and exceptional mechanical stability, this rod supports a voltage range of 10kV to 1000kV, making it suitable for various electrical insulation applications. The tensile strength of the product exceeds 1360 MPa, highlighting its durability and reliability. Taporel, the largest manufacturer of electrical insulation rods in China, proudly holds the unique distinction of producing these rods without using mold release agents, which enhances their environmental integrity and performance.

Having undergone rigorous testing, including the KEMA type test at a Netherlands laboratory, the ECR rod of Taporel has proven its resilience in extreme conditions. It has successfully been employed in the highest voltage AC and DC transmission lines, including 1000kV AC and ±1100kV DC systems.

Specifications

Additional Information

• Environmentally friendly manufacturing process
• Stable mechanical properties suitable for high voltage applications
• Tested for stress corrosion resistance
