Description

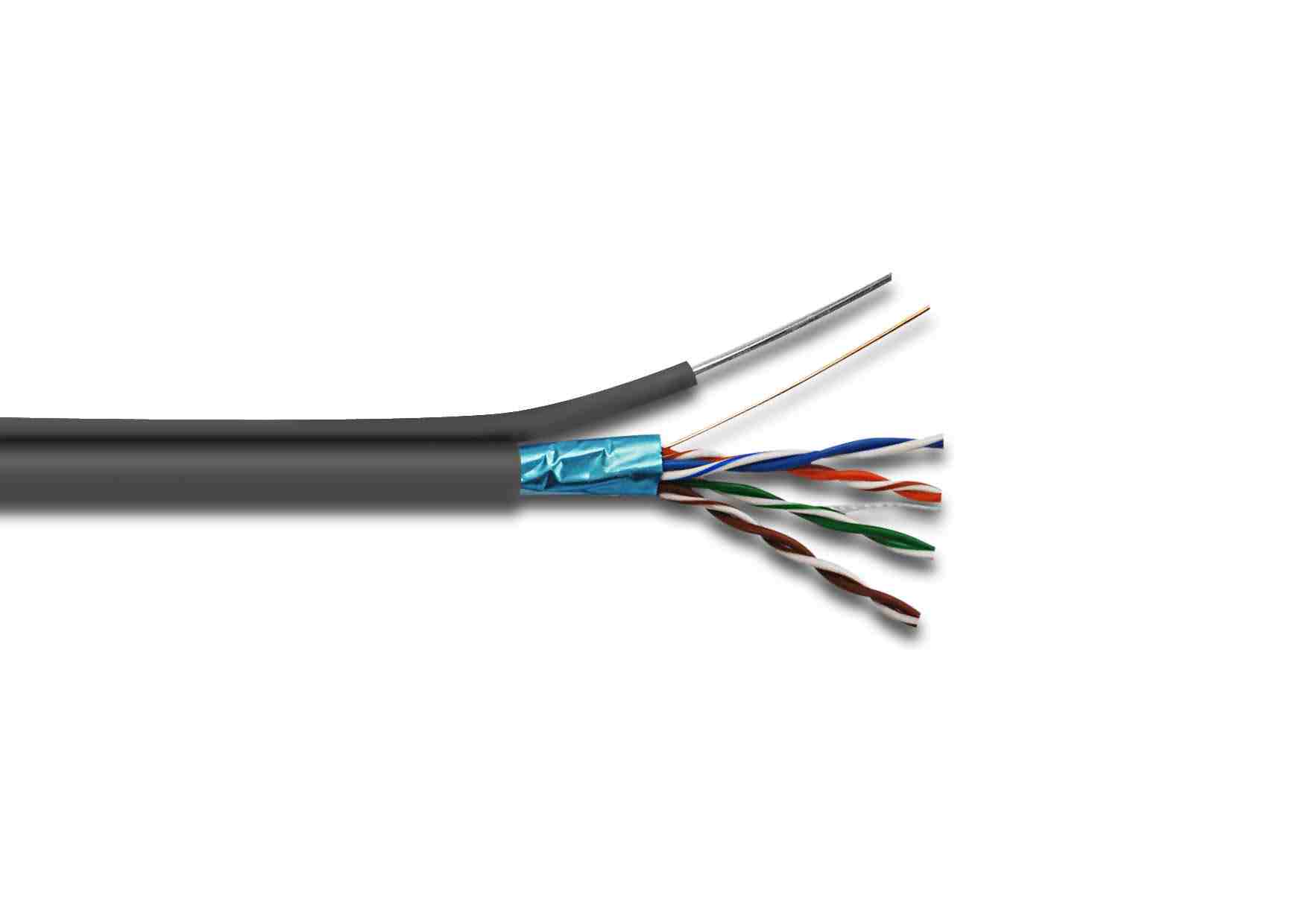

The FTP CAT5E Messenger is a high-performance networking cable specifically engineered to meet ANSI/TIA-568-C.25e and ISO/IEC 11801 Class D standards. This versatile cable is designed for use in various applications, including 100Base-TX, 100Base-T, 100VG-AnyLAN, 1000Base-T (Gigabit Ethernet), 1000Base-TX, and ATM networks. Its construction ensures reliable data transmission and compliance with stringent industry standards.
Key features include:
- Conductor: Solid bare copper and stranded copper for superior conductivity.
- Insulation: Colour-coded PE and FEP for easy identification and enhanced performance.
- Shielding: AL/PET shielding to minimize interference.
- Drain Wire: 0.5TC for grounding and protection.
- Messenger: Steel wire (1.16mm) for added strength.
- Jacket: Lead-free PVC, LLDPE, or LSZH for environmental safety.
- Flame Retardant Grade: ETL/UL (CMX, CM, CMG, CMR, CMP) and CPR (Bca, Cca, Dca) certified.
- Rated Temperature: Operates effectively at 60℃ and 75℃.
- Reference Standards: UL1581, UL444, UL910, TIA/EIA 568C.2, EN50575, EN50399, EN60332-1-2, EN61034.
Specifications
| Attribute | Details |
|---|---|
| Conductor | Solid bare copper, Stranded copper |
| Insulation | Colour-coded PE, FEP |
| Shield | AL/PET |
| Drain Wire | 0.5TC |
| Messenger | Steel wire – 1.16mm |
| Jacket | Lead-free PVC, LLDPE or LSZH |
| Flame Retardant Grade | ETL/UL (CMX, CM, CMG, CMR, CMP); CPR (Bca, Cca, Dca) |
| Rated Temperature | 60℃, 75℃ |
| Reference Standards | UL1581, UL444, UL910, TIA/EIA 568C.2, EN50575, EN50399, EN60332-1-2, EN61034 |
Additional Information
Ensure proper installation and handling to maintain cable integrity and performance. It is recommended to follow local electrical codes and standards during installation.
