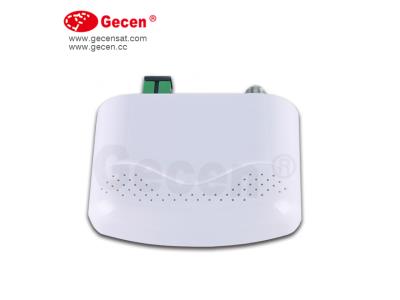

FTTH catv optical receiver
Inquire NowDescription
The FTTH CATV Optical Receiver is a cutting-edge device designed specifically for the efficient reception of optical signals in fiber-to-the-home (FTTH) networks. It is compatible with GPON, EPON, and any FTTx PON technology, making it a versatile solution for a variety of applications. This advanced receiver offers excellent linearity and flatness, ensuring high-quality signal transmission.
Equipped with a range of impressive features, the FTTH CATV Optical Receiver operates effectively across a wide range of optical input power levels. It boasts a single-mode fiber design with high return loss, and utilizes a GaAs MMIC amplifier for optimal performance. The ultra-low noise technology contributes to enhanced signal clarity, while its compact size facilitates easy installation. Additionally, visual indicators in the form of red and green LEDs inform users about the optical power levels, providing immediate feedback on operational status.
Specifications
| Item | Unit | Description | Remark |
|---|---|---|---|
| Customer Interface | |||
| RF Connector | F-female | ||
| Optical Connector | SC/APC or FC/APC | ||
| Power Supply | DC2.1 | ||
| Optical Parameter | |||
| Responsivity | A/W | ≥0.9 | |
| Input Optical Power | dBm | -10 ~ +3 | |
| AGC operation | dBm | -7 ~ +2 | Note 1 |
| Optical Return Loss | dB | ≥45 | |
| Input Wavelength | nm | 1260~1600 | Note 3 |
| 1550±20 | Note 4 | ||
| Optical Fiber Type | Single Mode | ||
| RF Parameter | |||
| Frequency Range | MHz | 47-1000 | |
| Flatness | dB | ±0.75 | |
| Output Level | dBμV | ≥80 | |
| CNR | dB | ≥50 | |
| CSO | dB | ≥62 | |
| CTB | dB | ≥65 | |
| Return Loss | dB | ≥16 | |
Additional Information
- Red & green LED indicators for optical power status
- Compact design for easy installation
- Operates in a wide range of optical input power
