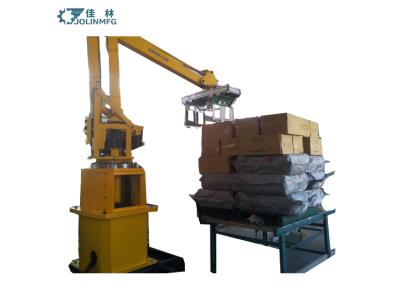

Full automated material handling robot pallet stacker robotic palletizer with palletizing

Inquire Now

Description

The Full Automated Material Handling Robot Pallet Stacker is a state-of-the-art robotic palletizer designed to streamline the packing industry. This versatile machine is capable of handling a variety of products, including bags, cartons, bottles, and cans. With its advanced automation technology, it enhances efficiency in material handling and palletizing processes. Key features include a high-capacity output of 15-30 cartons or bags per minute, customizable palletizing modes to meet specific customer requirements, and a robust control system consisting of PLC, touch screen, and pneumatic systems.

Specifications

Attribute Details
Capacity 15-30 cartons(bags)/min
Pallet Size 1400mm x 1200mm x 160mm
Pneumatic Pressure 0.5MPa – 0.6MPa
Air Consumption 45NM³/Hour
Power Supply 380V AC 50Hz, 10KW
Noise Level Less than 75db

Additional Information

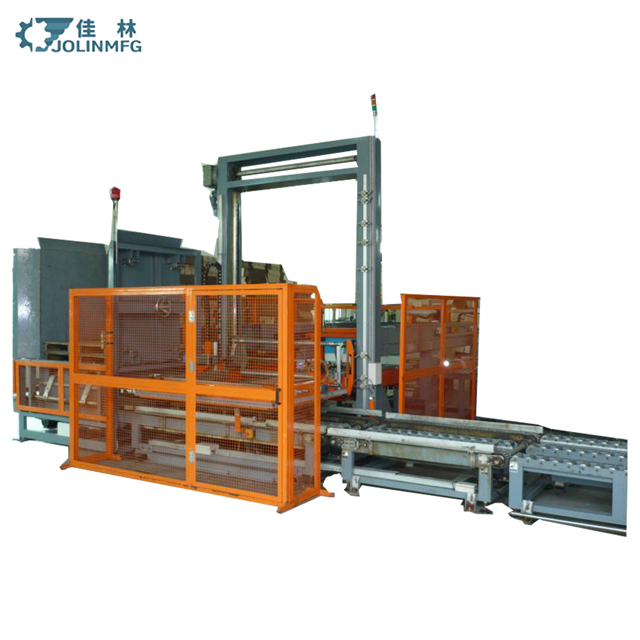

This automatic palletizer consists of a group organizing and bag/carton pushing machine, palletizing machine, pallet storing machine, empty pallet conveyor, and ready pallet conveyor, ensuring a complete solution for end-of-line operations.
