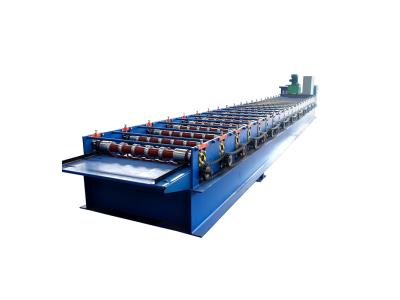

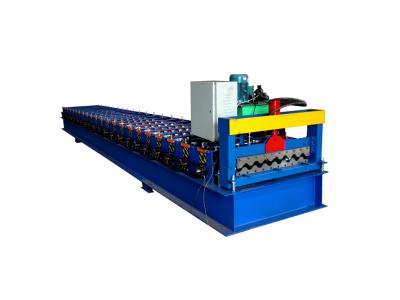

full automatic corrugated roll forming machine alluminium panel machine
Inquire NowDescription
The full automatic corrugated roll forming machine for aluminum panels is engineered for precision and efficiency in the production process. This advanced machine streamlines the formation of corrugated aluminum sheets, ensuring high-quality output with minimal manual intervention. Equipped with a robust PLC control system, it guarantees seamless operation and optimal performance, making it ideal for industrial applications.
Specifications
| Configurations | Manual Uncoiler, Guiding Platform, Coil Strip Leveler, Main Machine Of Roll Forming, Electro-Motor, Cutting Device, Hydraulic Station, PLC Control, Supporter Table. |
|---|---|
| Control System | PLC Delta Inverter |
| Main Frame | 250mm H-Beam |
| Main Power | 3 kw |
| Pump Power | 3 kw |
| Power Supply | 380V, 3-Phase, 50Hz |
| Forming Speed | 10 m/min |
| Roll Station | 14 stands |
| Roller Diameter | 80 mm |
| Hydraulic Pressure | 10-12 MPa |
| Forming Size | 988 mm |
| Feeding Thickness | 0.3-0.8 mm |
| Feeding Width | 1200 mm |
| Backboard Thickness | 14 mm |
| Chain Size | 20 mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05 mm |
| Overall Size | 7500 × 1600 × 1500 mm |
| Total Weight | 4T |
