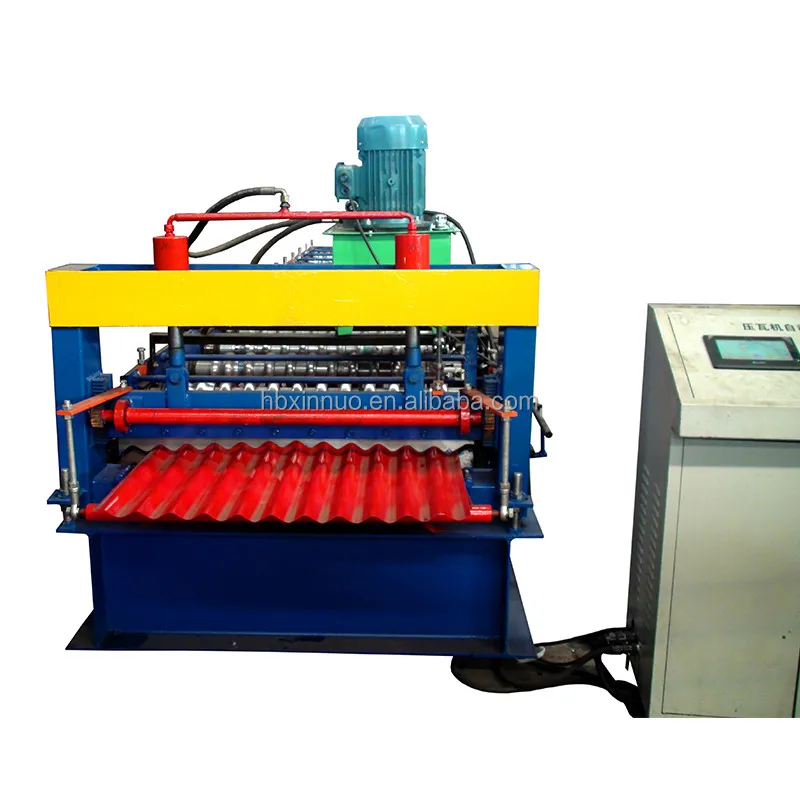

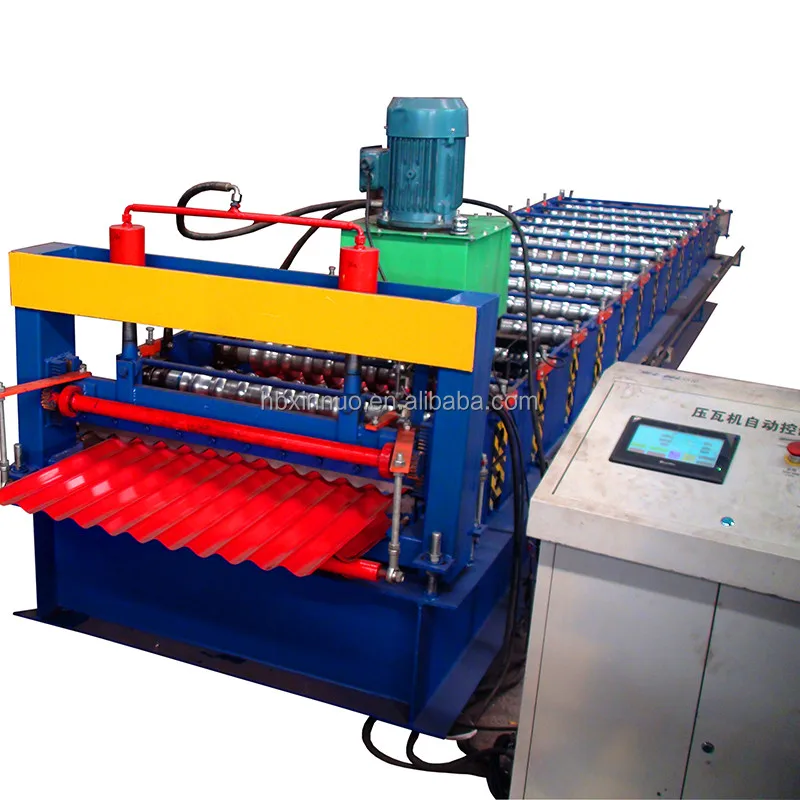

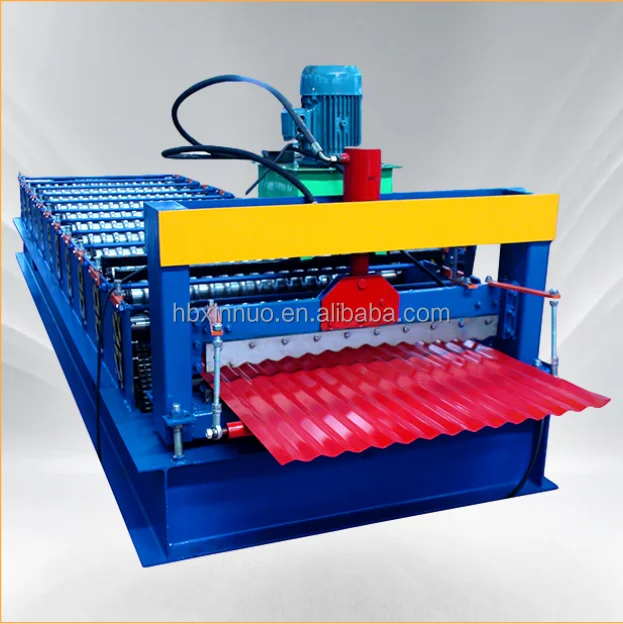

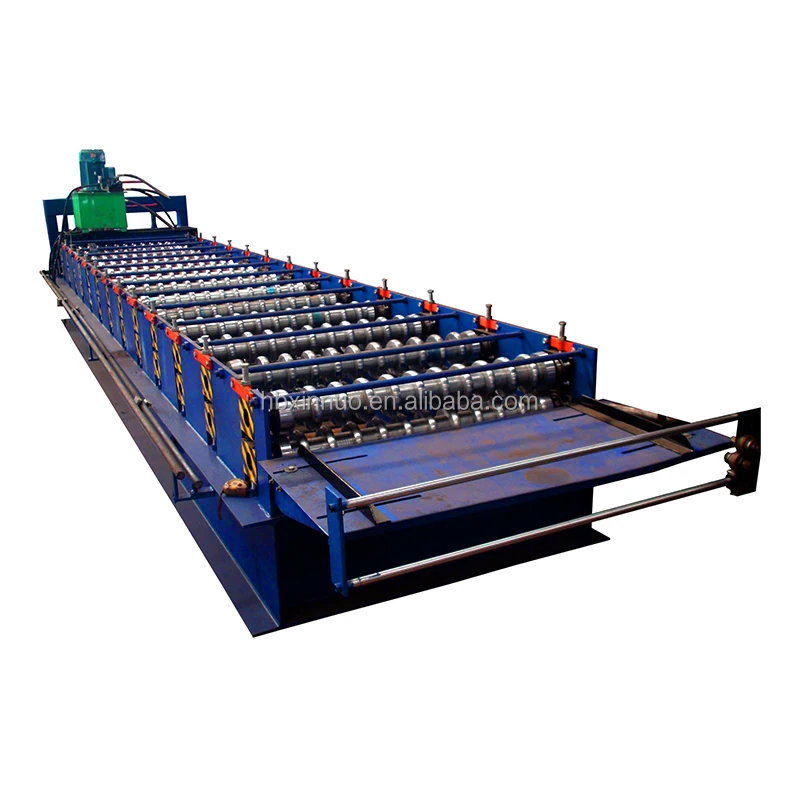

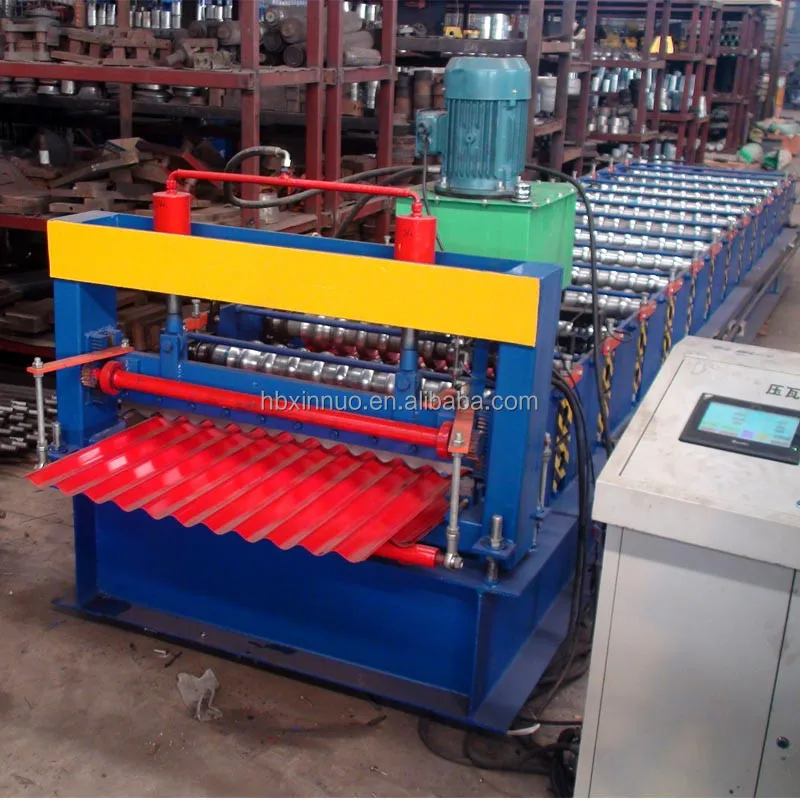

full automatic corrugated roll forming machine corrugated sheet machine
Inquire NowDescription
The Full Automatic Corrugated Roll Forming Machine is an advanced solution designed for efficiently producing high-quality corrugated sheets from color steel plates. This state-of-the-art machine offers a seamless operation, ensuring high productivity and precision in the manufacturing process. With a robust construction and user-friendly interface, it is perfect for industries looking to enhance their production capabilities while maintaining exceptional product quality.
Specifications
| # | Feature | Details |
|---|---|---|
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 1000mm |
| 3 | Thickness of the plate | 0.3-0.8mm |
| 4 | De-coiler | Manual, can load 5 tons raw material |
| 5 | Rollers for forming | 14 rows |
| 6 | Diameter of the roller | 80mm |
| 7 | Rolling material | Carbon Steel 45# |
| 8 | Main motor power | 4kw |
| 9 | Productivity | 8-12m/min |
| 10 | Cutting method | Hydraulic mould cutting |
| 11 | Material of the cutting blade | Cr12 |
| 12 | Hydraulic cutting power | 3kw |
| 13 | Processing precision | Within 1.00mm |
| 14 | Control system | Delta PLC control |
| 15 | Side panel of machine | 14mm |
| 16 | Main structure of the machine | 300 H steel |
| 17 | Weight | About 4.6T |
| 18 | Dimensions | 7.5*1.6*1.2m |
| 19 | Voltage | 380V 50Hz 3phases (changeable as needed) |
| 20 | Certificate | CE/ISO |
Packing & Delivery
| Packaging Details: | Main machine is nude, the computer control box is packed with wooden frame. |
| Delivery Detail: | 20 days |
