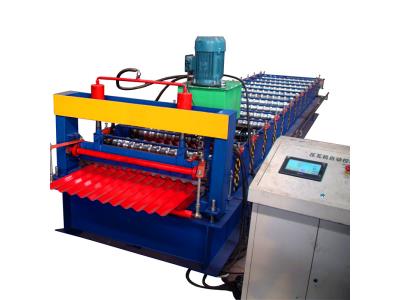

full automatic corrugated roll forming machine corrugated sheet machine
Inquire NowDescription

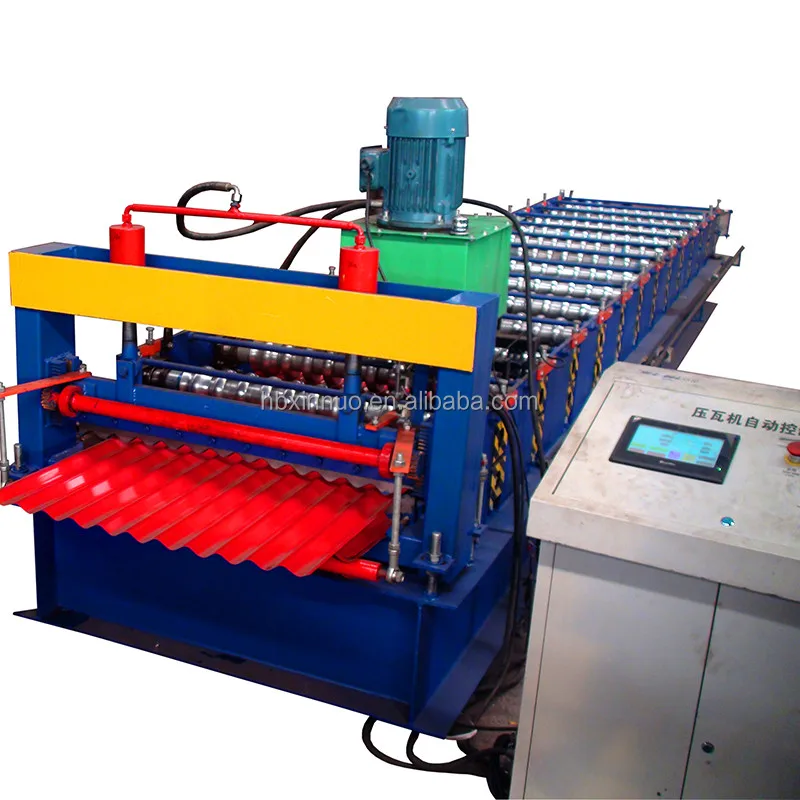

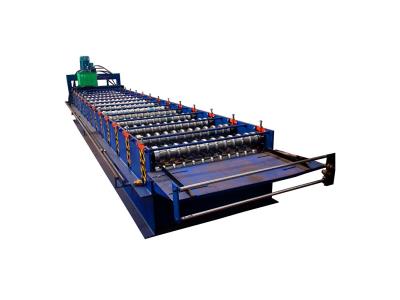

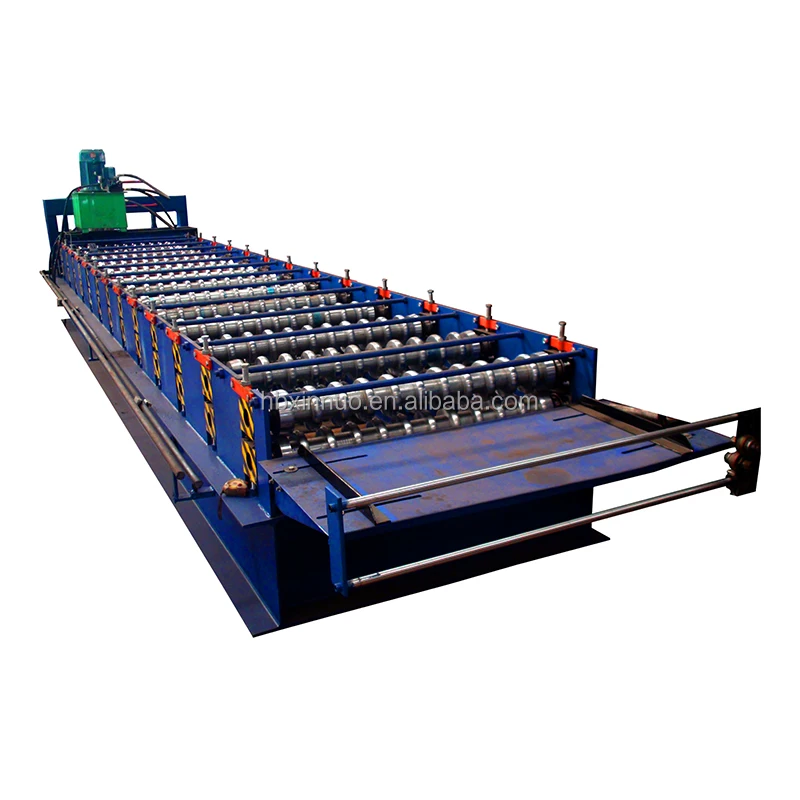

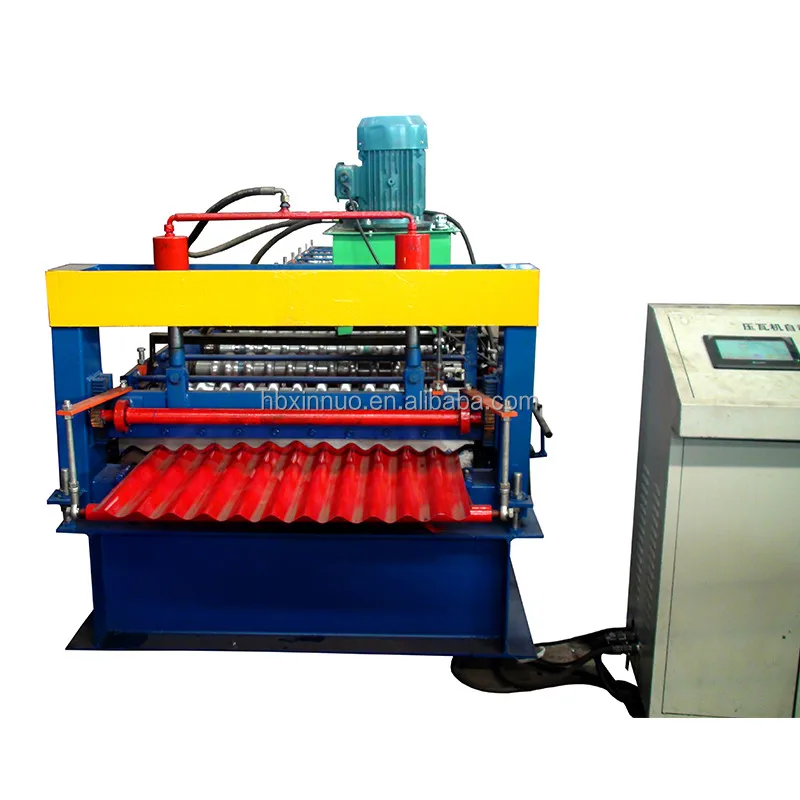

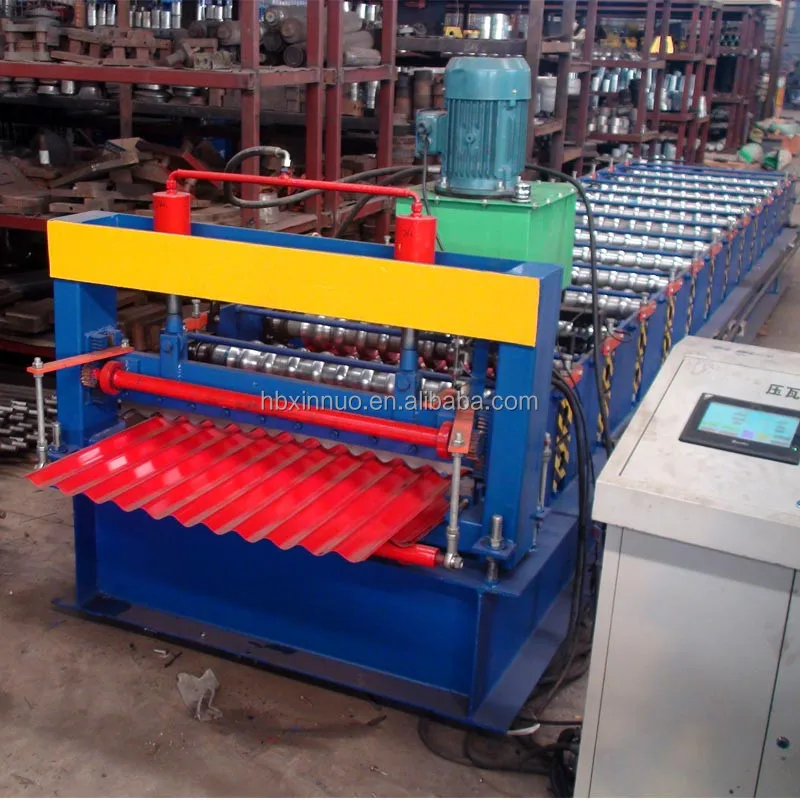

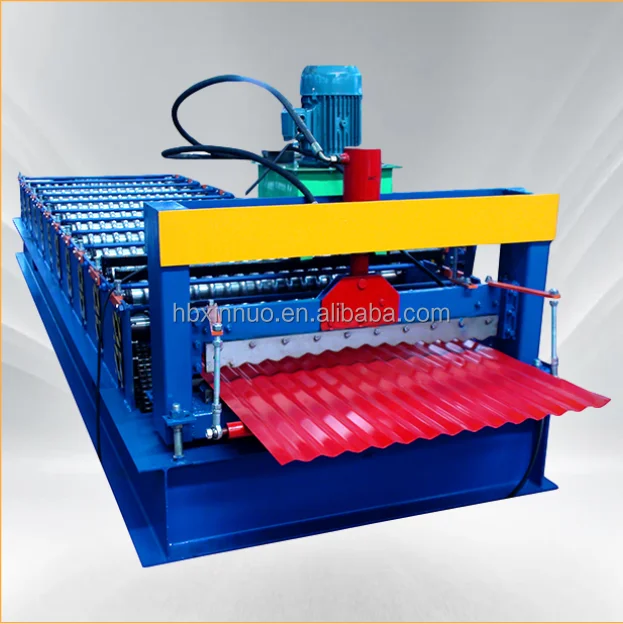

Full Automatic Corrugated Roll Forming Machine is designed for producing high-quality corrugated sheets efficiently and effortlessly. This advanced machine excels in processing color steel plates with precision, making it ideal for a variety of applications in the construction and manufacturing industries. With its robust design and state-of-the-art technology, it guarantees durability and reliability. The machine features a manual de-coiler capable of holding up to 5 tons of raw material, 14 rows of rollers for forming, and a hydraulic cutting system that ensures clean and accurate cuts.
Specifications
| # | Specification | Details |
|---|---|---|
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 1000mm |
| 3 | Thickness of the plate | 0.3-0.8mm |
| 4 | De-coiler | Manual, can load 5 tons raw material |
| 5 | Rollers for forming | 14 rows |
| 6 | Diameter of the roller | 80mm |
| 7 | Rolling material | Carbon Steel 45# |
| 8 | Main motor power | 4kw |
| 9 | Productivity | 8-12m/min |
| 10 | Cutting method | Hydraulic mould cutting |
| 11 | Material of the cutting blade | Cr12 |
| 12 | Hydraulic cutting power | 3kw |
| 13 | Processing precision | Within 1.00mm |
| 14 | Control system | Delta PLC control |
| 15 | Side panel of machine | 14mm |
| 16 | Main structure of the machine | 300 H steel |
| 17 | Weight | About 4.6T |
| 18 | Dimensions | 7.5*1.6*1.2m |
| 19 | Voltage | 380V 50Hz 3phases (changeable as needs) |
| 20 | Certificate | CE/ISO |
Packing & Delivery
Packaging Details: The main machine is nude, while the computer control box is packed with a wooden frame. Main machine is nude in the container, and the computer control box is packed with wooden packaging.
Delivery Detail: 20 days
