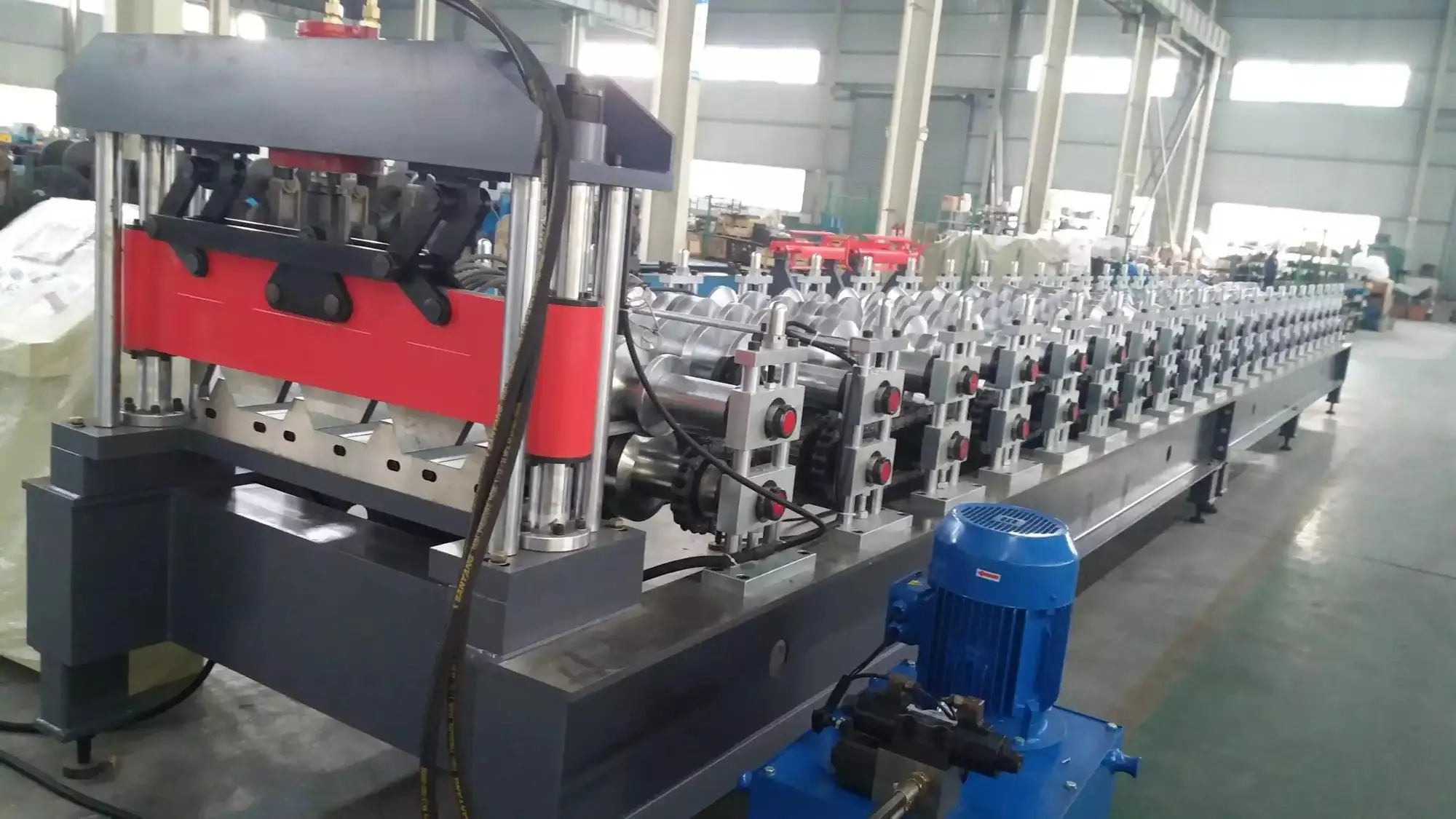

Fully automated iron sheet rolling machinery steel roll forming machine
Inquire NowDescription
The Fully Automated Iron Sheet Rolling Machinery is designed for efficient and high-quality steel roll forming, making it an ideal solution for the production of wall and roofing accessories. This advanced machine offers excellent performance with a production capacity of 12-15 meters per minute, allowing businesses to enhance their operational efficiency. With robust construction and reliable technology, it is suitable for various applications in building material shops. The machine guarantees consistent quality and precision in producing colored glaze steel roofing sheets, making it an essential investment for the modern manufacturing industry.
Specifications
| Attribute | Details |
|---|---|
| Type | Wall and Roofing Accessories |
| Tile Type | Colored Glaze Steel |
| Production Capacity | 12-15 m/min |
| Voltage | 380V or as your requirement |
| Dimension (L*W*H) | 6500*1300*1100 mm |
| Weight | About 1T |
| Rolling Thickness | 0.2-1.0 mm |
| Feeding Width | 1220 mm, 915 mm, 900 mm, 1200 mm, 1000 mm, 1250 mm |
| Warranty | 1 Year |
| Certification | CE ISO |
| Core Components | Pressure vessel, Motor, Engine, PLC |
Additional Information

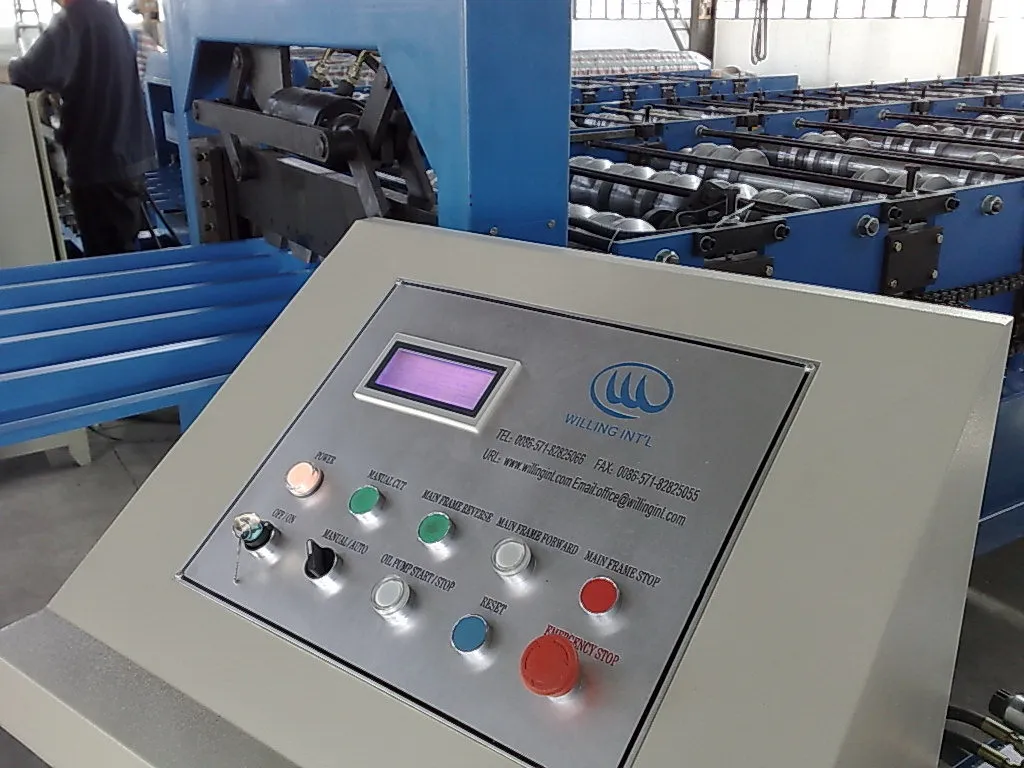

This machine comes with comprehensive after-sales support, including video technical assistance, online support, and field maintenance. It is designed to facilitate easy operation with a touch screen interface and includes a hydraulic system that ensures optimal performance. The machine is built with high-quality materials, ensuring durability and longevity.
