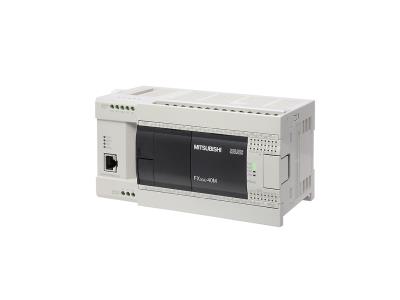

FX3G-40MR/DS – Programmable Logic Controller
Inquire NowDescription
The FX3G-40MR/DS is a cutting-edge Programmable Logic Controller (PLC) CPU unit from Mitsubishi’s MELSEC-F (FX) Series. Designed for industrial automation, it boasts a compact and lightweight structure, making it highly portable and easy to integrate into various applications. This unit features a robust built-in I/O configuration, providing 40 I/O points, which include 24 digital inputs and 16 relay outputs. With a memory capacity of 32K steps and the ability to connect up to 128 I/O points, it is ideal for complex control tasks across multiple industries.
Equipped with a USB connector and RS-422 communication capability, the FX3G-40MR/DS ensures seamless integration and connectivity. It operates on a supply voltage of 24V DC and is mountable on DIN rails, facilitating straightforward installation and maintenance. This versatile PLC is perfect for applications ranging from automotive assembly lines to food processing and packaging machinery.
Features
- Unique Design: Multi-functional control module suitable for various machine components.
- Easy Carry: Compact and lightweight, making it convenient for transport and storage.
- Simple Installation: Tool-free setup that takes only minutes to complete.
Application
- Automotive industry, e.g., assembly lines
- Mechanical equipment manufacture
- Warehousing technology
- Steel industry
- Building management systems
- Power generation and distribution
- Paper and printing industry
- Woodworking
- Food and beverages industry
- Process engineering, e.g., water and wastewater utilities
- Chemicals and petrochemicals
- Instrumentation and control
- Packaging machinery
Specifications
| Type | FX3G |
|---|---|
| Power Supply (V) | 24 |
| Current Type | DC |
| Program Memory | 32K STEPS |
| Program Memory Unit | EEPROM |
| Integrated Digital Inputs | 24 |
| Integrated Digital Outputs | 16 |
| Output Type | RELAY |
| Local I/O Points | 128 |
| Local + Remote I/O Points | 256 |
| Expandable | YES |
| Cycle Time LD (ns) | 210 |
| Cycle Time MOV (ns) | 500 |
| USB | 1 |
| RS-422 | 1 |
| Power Consumption (W) | 25 |
| Buffer Battery | OPTION |
| Protection Class | IP10 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
| Series | MELSEC-F SERIES |
