1.800W Motor-Speed and Passion Coexist, High Efficiency of Motor, Low Noise During Operation.
2.48V20AH-Large Capacity Environmental Protection Lithium Battery Provide Lasting Power for Endurance.
3.2.75-10/14*2.75 Vacuum Tire-Wear – resistant, comfortable, silent, non – slip
4.Double Damping-Efficient Shock Absorption, Smooth Bumpy Road, Easy to Deal with Various Road Conditions.
5.Front and Rear the Drum Brake-Stable and Safe When Emergency Braking.
6.LED Headlamps, Cool side lights, Striking tail lights.
7.Carrying Basket-High Capacity,Good Material, Strong Bearing.
8.Soft Saddle-Sitting for a Long Time is not Tired and not Easy to Deform.
9.Blackberry Digital LCD Screen-Large Screen, Complete Data, Clear.

1.Dimensions:

Length×Width×Height 1440mm ×670mm ×1060mm

Wheelbase 1170mm

Min.Ground Clearance 120mm

Seating Height 760mm

2.Framework:

Front Shock Absorber Oil Damping Direct Acting Shock Absorber

Rear Shock Absorber Oil Damping Direct Acting Shock Absorber

Front/Reae Tire Spec 2.75-10 front Rim:2.15-10 rear rim:2.15-10

Front Braking Mode Drum brake 110mm / hand brake

Rear Braking Mode Drum brake 110mm / hand brake

Swinarm Steel

Frame material High quality carbon steel

Max payload 150Kg

3.Power System:

Maxium Speed 25 Km/h

Motortype Hub motor

Rated power 800W

MAX torque 65N.M

Maximum discharge current 15A

Motor Control Solution FOC

Maximum output phase current 60A

4.Battery:

Battery Unit Lithium Battery

Voltage 48V

Capacity 20Ah

Standard Charging Current 5A

Standard Discharging Current 15A

Max.Discharging Current 25A

5.Electrical System:

LED Headlinght

LED Turning Light

LED Tail Light

LED Braking Light

LCD Dashboard

6.Performance:

Climbing 10°

Accelerate（0-25） 8S

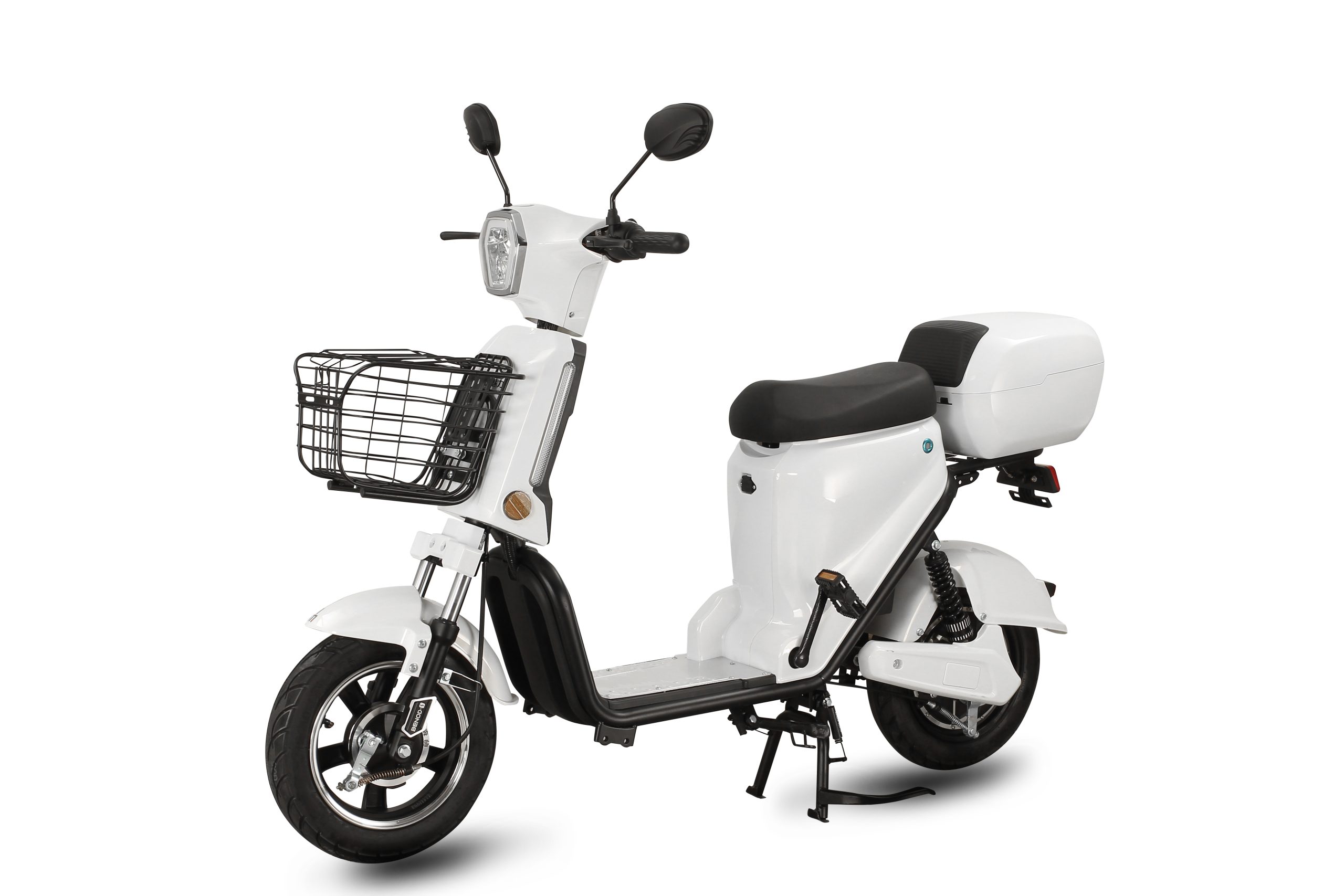

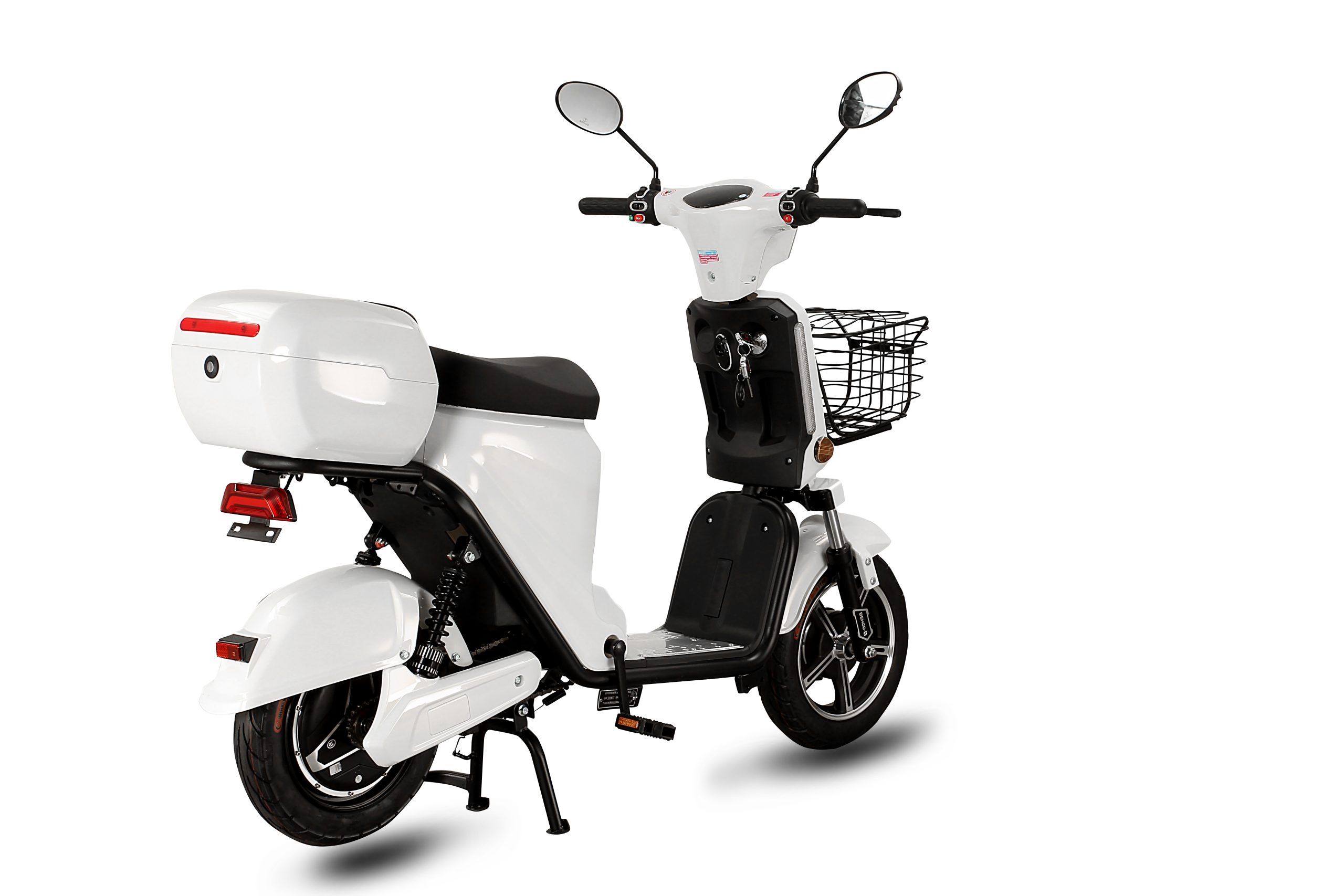

7.Pictures:
