OEM ODM galvanized steel sheet corrugated roll forming machine 1250mm roofing roll forming machine
Description

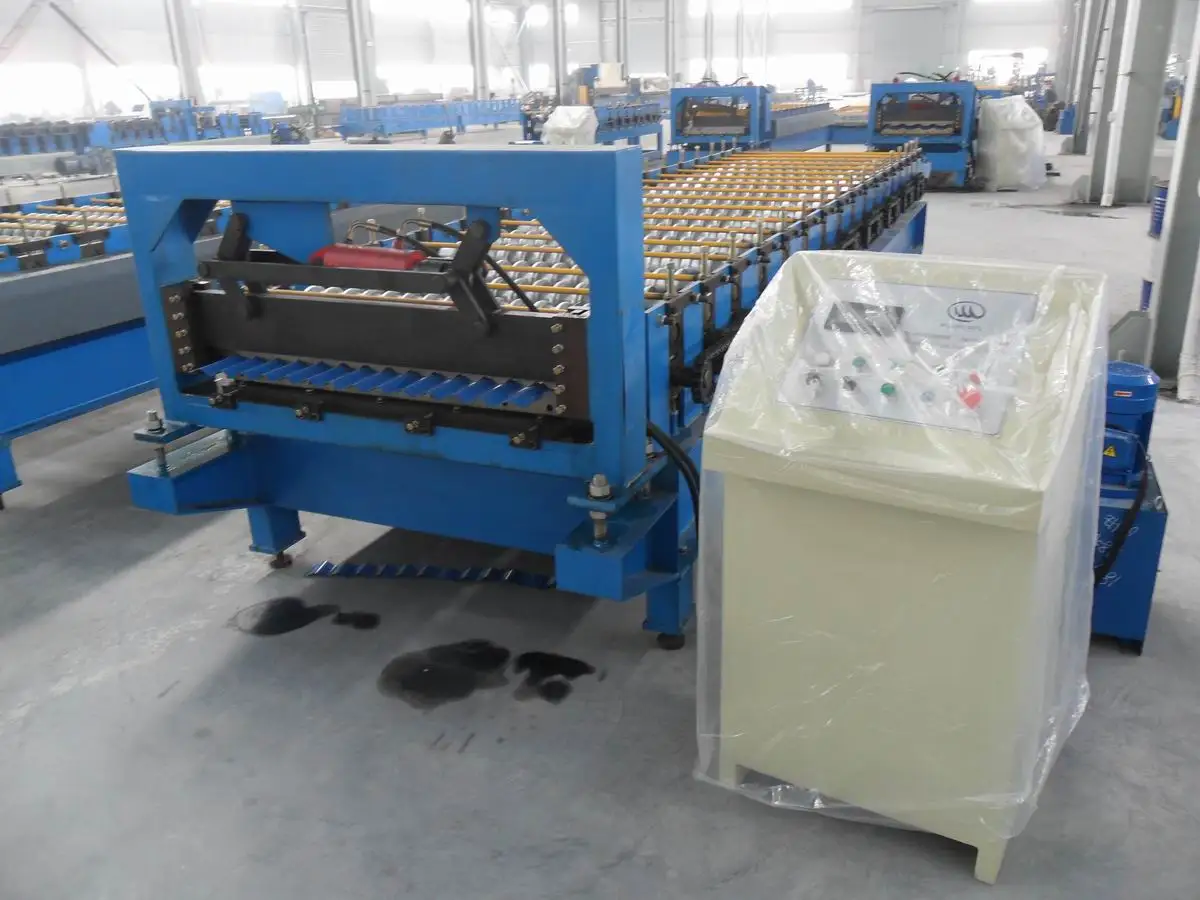

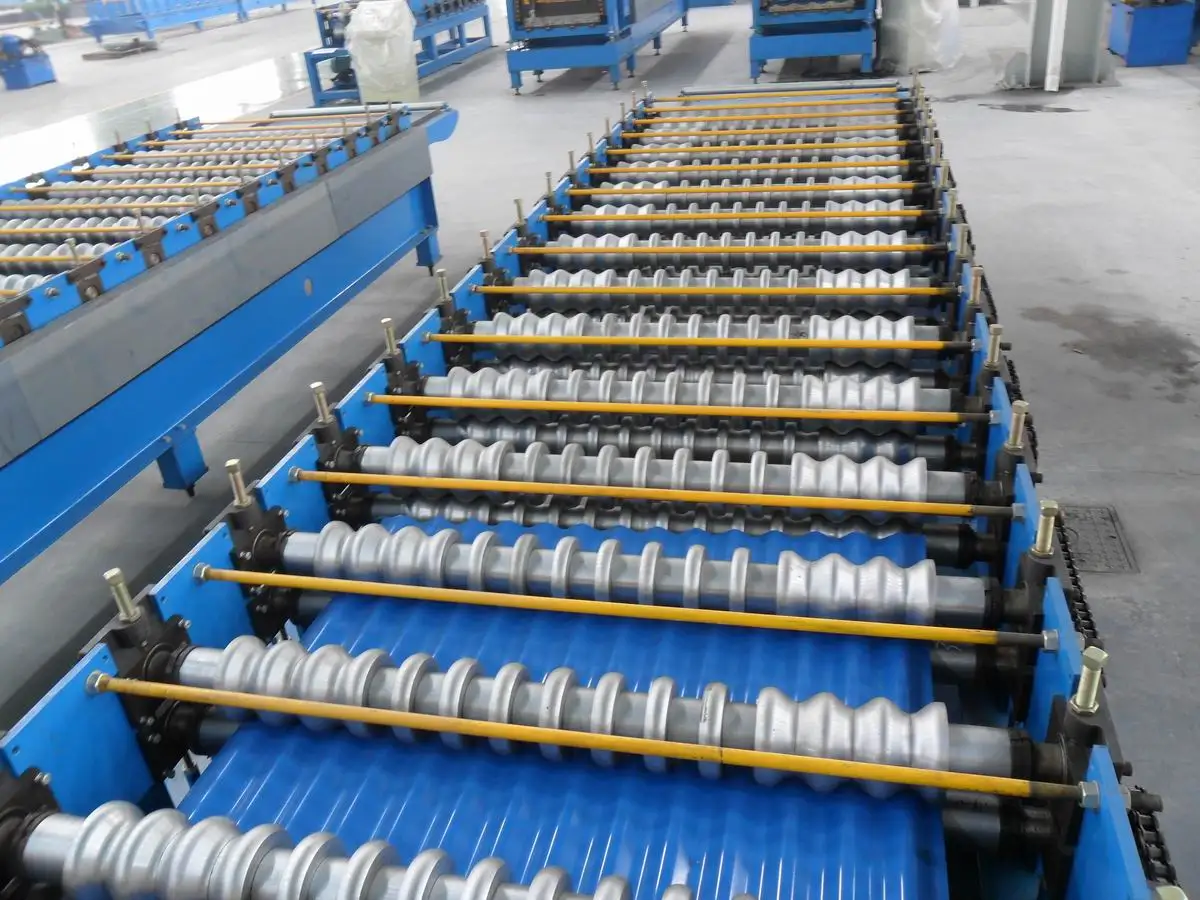

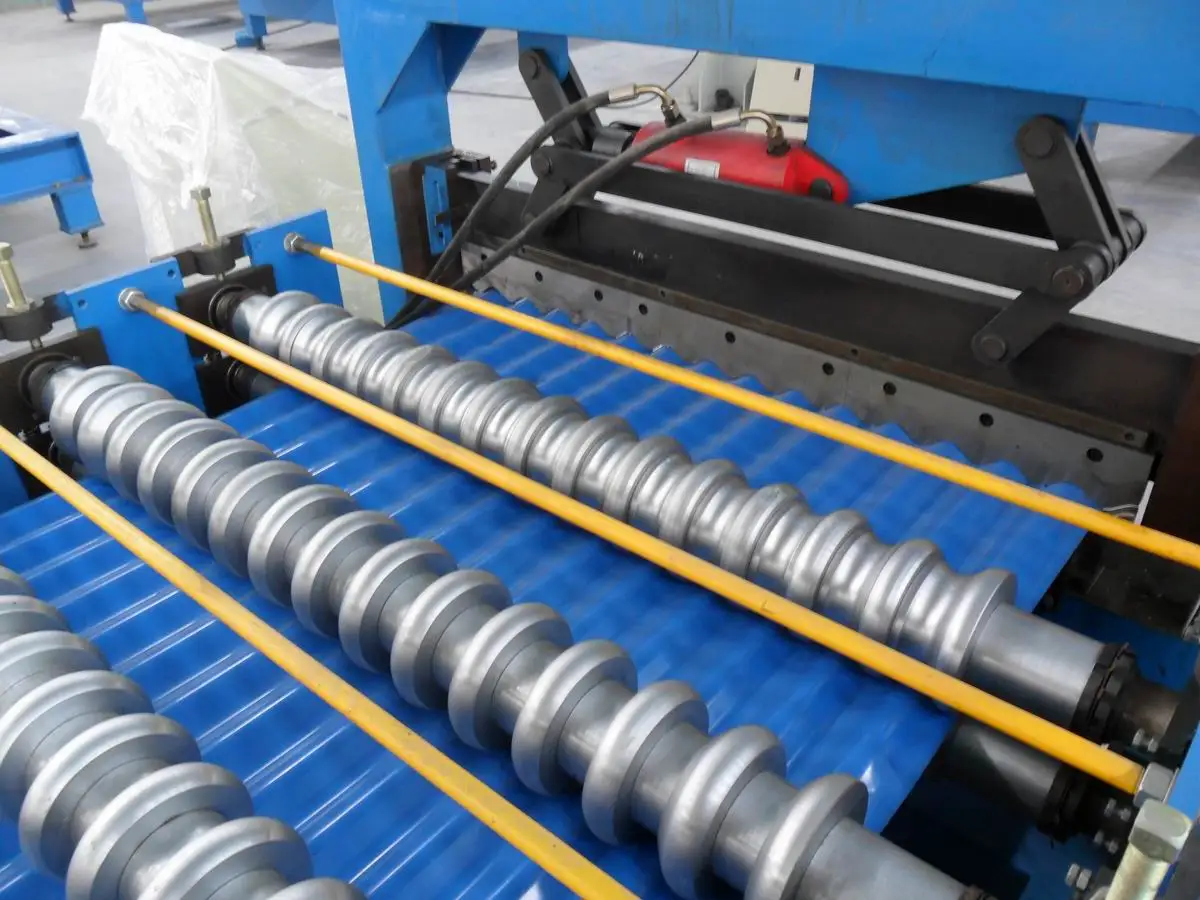

The galvanized steel sheet corrugated roll forming machine is a state-of-the-art solution for producing high-quality steel roofing and wall panels. Designed for ease of use, it features a remote control system and lifetime video online service, ensuring that you can operate the machine efficiently. This robust machine is capable of handling pre-painted and galvanized steel coils, making it ideal for various construction applications.
Specifications
| Attribute | Details |
|---|---|
| Product Name | Steel roof & wall forming machine |
| Material | Pre-painted & galvanized steel coil |
| Thickness (mm) | 0.3-0.7 mm |
| Tield stress (Mpa) | Q235-345 |
| Max. forming speed (m/min) | 10-15 m/min |

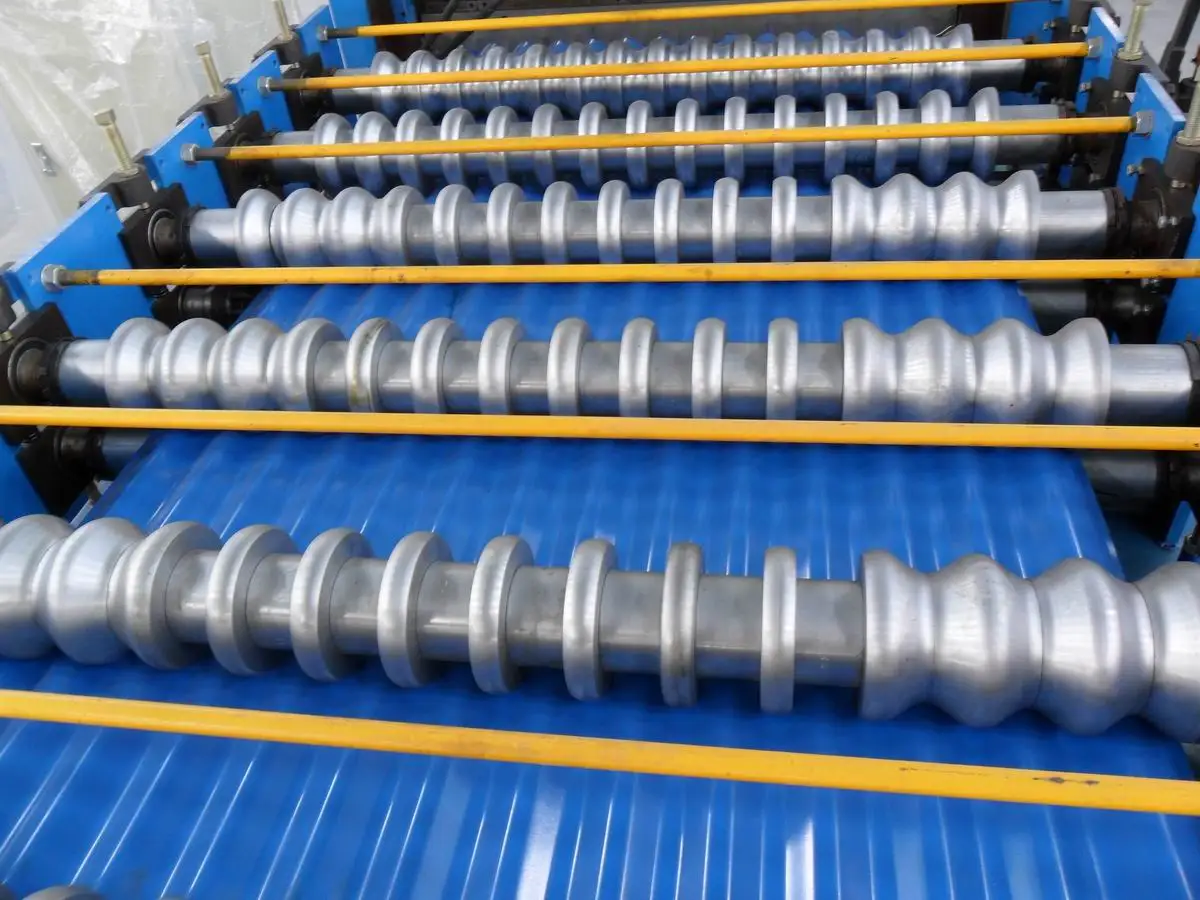

| Roller material | #45 steel with hard chrome treatment |
| Roller driven type | Chain transmission |
| Controller | PLC |
| Operation | Touch screen and button |
| Hydraulic system pressure (Mpa) | 12 |
| Main motor power (KW) | 4 |
| Hydraulic station motor power | 3 |
| Dimension (L*W*H) | about 8500*1500*1500 mm |
| Weight (KG) | about 6000 |
Additional Information
Our Service:
– Provide Pre-sales Consultant & On-purchase service & After-sales service 24hr × 7 days per week
– Give technical suggestions
– Test the machine before shipment
– Provide technical guidance related to using the machine
– Supply one-year warranty period for the machine
– Provide spare parts at cost price after warranty period
– Collect feedback for machine performance
– Provide long-term technical assistance.
