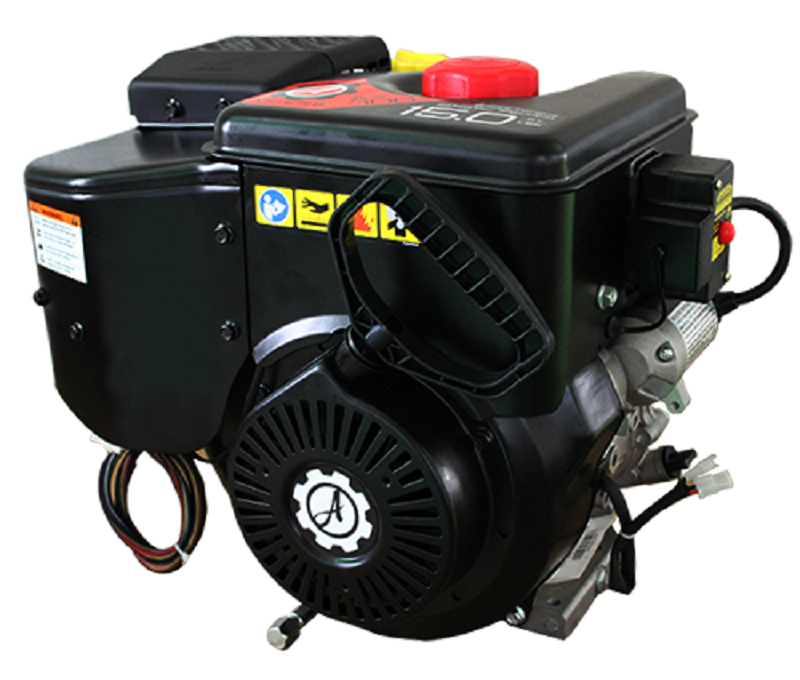

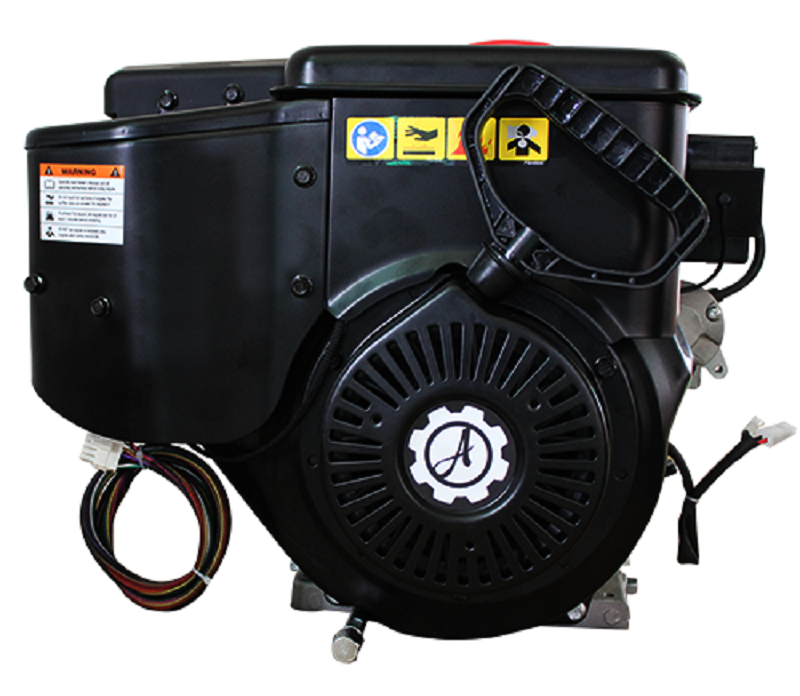

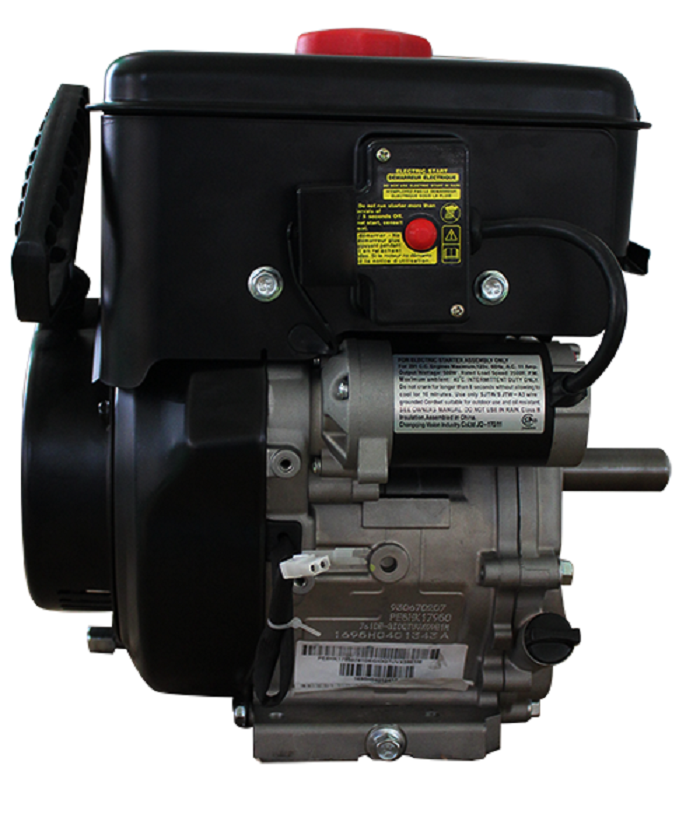

Gasoline Engine 306 369 420CC
Inquire NowDescription
The Gasoline Engine 306 369 420CC series is engineered for high performance and reliability, making it the ideal choice for a wide range of applications. With three distinct models—LSN306 EFI, LSN369 EFI, and LSN420 EFI—this engine series caters to various power needs, offering robust net power outputs ranging from 7.2 kW to 9.5 kW at 3600 RPM. Each model is designed with precision, ensuring optimal torque and efficiency, delivering net torque values of 19.5 N·m to 26 N·m at 2800 RPM. Built with durability in mind, these engines feature a compact size without compromising on power, making them suitable for both industrial and recreational uses.
Specifications
| MODEL | LSN306 EFI | LSN369 EFI | LSN420 EFI |
|---|---|---|---|
| NET POWER | 7.2 kW / 3600 rpm | 8.5 kW / 3600 rpm | 9.5 kW / 3600 rpm |
| NET TORQUE | 19.5 N·m / 2800 rpm | 22.0 N·m / 2800 rpm | 26 N·m / 2800 rpm |
| BORE X STROKE | 82 × 58 mm | 85 × 65 mm | 90 × 66 mm |
| DISPLACEMENT | 306 cc | 369 cc | 420 cc |
| FUEL TANK CAPACITY | 3.6 L | 3.6 L | 3.6 L |
| OIL CAPACITY | 1.1 L | 1.1 L | 1.1 L |
| NET WEIGHT | 28 kg | 33.7 kg | 33.7 kg |
| DIMENSIONS (LxWxH) | 557 × 447 × 433 mm | 557 × 447 × 433 mm | 557 × 447 × 433 mm |
Additional Information
- Engine Type: Gasoline
- Suitable for various applications, including industrial and recreational use.
- Compact design with powerful output.
