Description

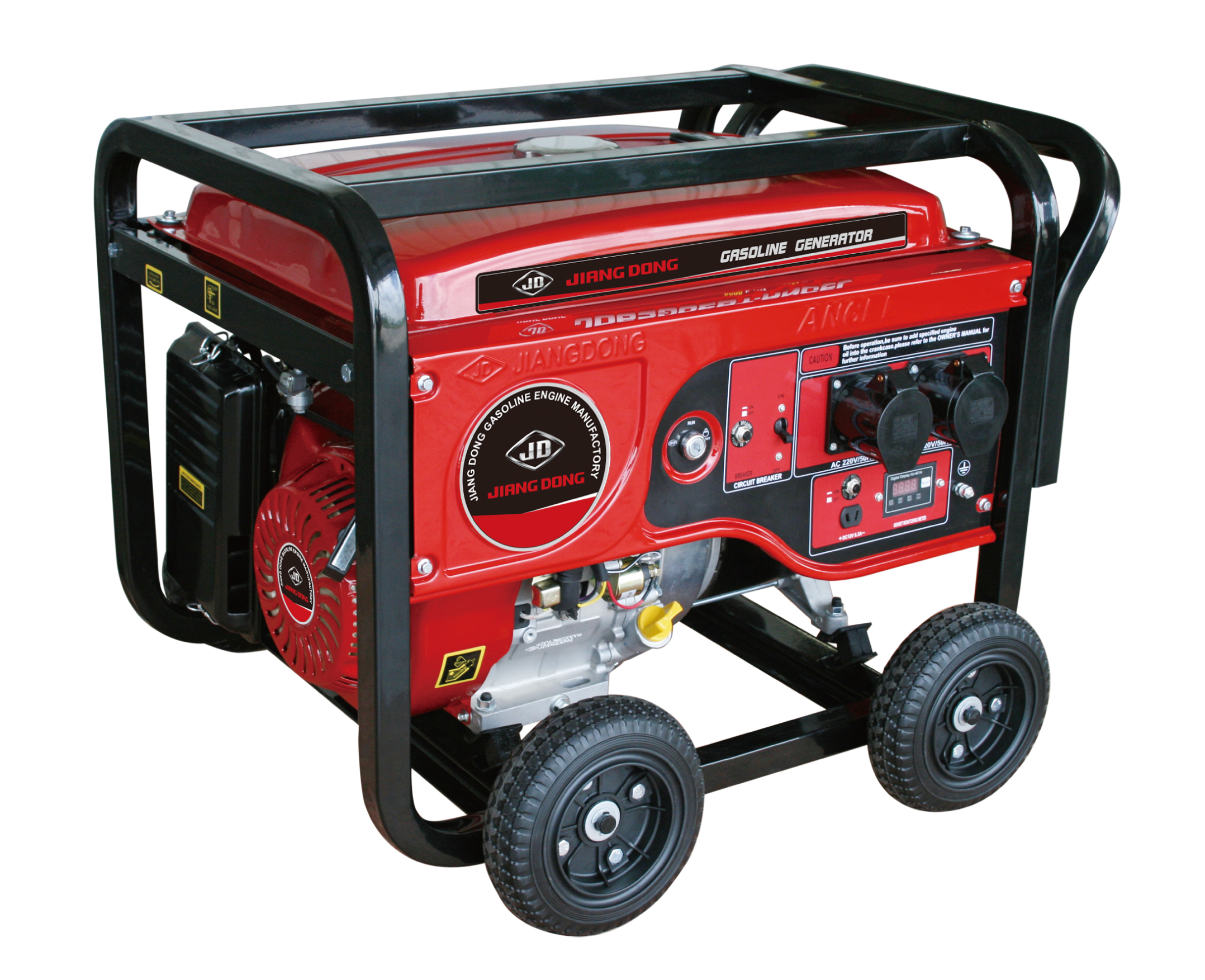

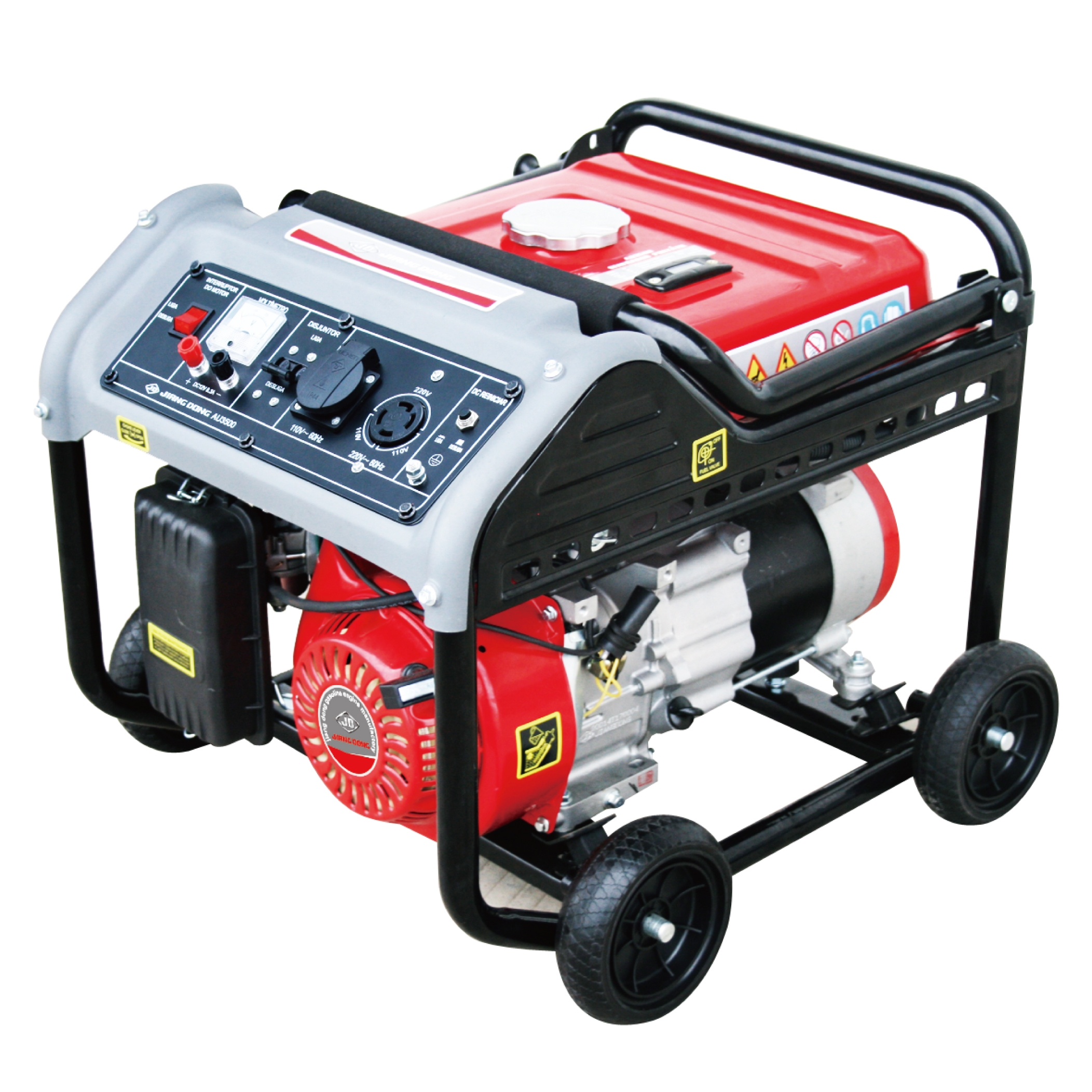

The Gasoline Generator is a robust and reliable power solution designed for a variety of applications. Whether you need backup power during outages or a portable power source for outdoor activities, this generator offers impressive performance and versatility. With models ranging from JD2000 to JD3000, it provides different outputs to suit your power needs. Featuring a brush single-phase type and equipped with an Automatic Voltage Regulator (AVR), this generator ensures stable voltage for your devices. The engine operates quietly at a noise level of just 67 dB(A) from 7 meters, making it ideal for residential areas or quiet outdoor settings.
Specifications
| Category | Model JD2000 | Model JD2500 | Model JD3000 |
|---|---|---|---|
| Type | Brush Single-Phase | ||
| Voltage Regulate | AVR | ||
| Frequency Hz | 50/60 | ||
| Rated AC Voltage (V) | 110V/120V/220V/230V/240V | ||
| Rated AC Output (KVA) | 1.5/1.8 | 2.0/2.2 | 2.5/3.0 |
| Peak AC Output (KVA) | 1.7/2.0 | 2.2/2.5 | 2.8/3.5 |
| Power Factor COSφ | 1.0 | ||
| Engine Model | JF168 | JF168 | JF200 |
| Type | OHV Forced Air-cooled 4-stroke | ||
| Bore x Stroke (mm/inch) | 68×45/2.68×1.77 | 68×45/2.68×1.77 | 68×54/2.68×2.13 |
| Displacement (ml) | 163 | 163 | 196 |
| Max. output (HP/rpm) | 5.5/3600 | 5.5/3600 | 6.5/3600 |
| Fuel | Unleaded Gasoline | ||
| Fuel Tank Capacity (L/gal) | 15/4 | ||
| Continuous Operating Hours (h) | 13 | 13 | 11 |
| Oil | SF or Higher Grade | ||
| Oil Capacity (L/gal) | 0.6/0.16 | ||
| Ignition system | T.C.I. | ||
| Starting System | Recoil and hand-operated / Electric start | ||
| Operating Noise Level (7m) dB(A) | 67 | ||
| Package Dimensions L×W×H (mm/inch) | 600×450×470/23.6×17.7×18.5 | ||
| Gross Weight (kg/lbs) | 41/90.2 | 42/92.4 | 52/144.4 |
| Net Weight (kg/lbs) | 39/85.8 | 40/88 | 48/105.6 |
| 20/40FT unit | 240/475 | ||
Additional Information
Note: Specifications are subject to change without notice.
