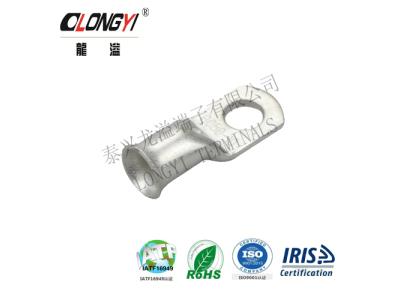

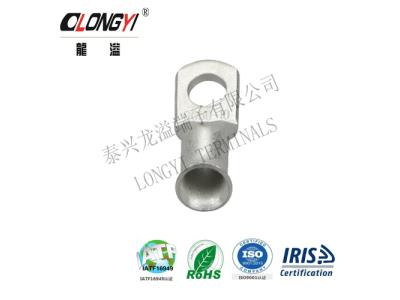

Gc Cable Lugs Longyi Terminals
Inquire NowDescription
The GC Cable Lugs Longyi Terminals are the ideal solution for connecting copper conductors ranging from 10 to 400 mm² in power cables to electronic equipment. Crafted from high-purity 99.99% T2 copper and coated with tin, these cable lugs ensure excellent conductivity and durability. They can operate efficiently across a wide temperature range of -55°C to 150°C, making them suitable for various applications.
With over 95% of fully automated production lines and a capacity of 200 tons, the manufacturing process is continuously optimized to adapt to market demands. The lugs have passed stringent safety certifications including CE, UL, and JIS, ensuring compliance with international quality standards. The company’s commitment to quality is reflected in its thorough inspection processes at each stage, from raw materials to final packaging.
Additionally, the company benefits from its own processing facilities for copper materials, allowing for competitive pricing without compromising on quality. This ensures that customers receive maximum value for their investment.
Specifications
| PART NO | ITEM NO | φE | OD | ID | D | B | L |
|---|---|---|---|---|---|---|---|
| LY0003-0001 | GC1.5-3 | 3.2 | 3.7 | 1.8 | 8.0 | 6.0 | 16.0 |
| LY0003-0002 | GC1.5-4 | 4.3 | 3.7 | 1.8 | 8.0 | 6.0 | 17.0 |
| LY0003-0003 | GC1.5-5 | 5.3 | 3.7 | 1.8 | 10.0 | 7.0 | 19.0 |
| LY0003-0004 | GC1.5-6 | 6.5 | 3.7 | 1.8 | 10.0 | 7.0 | 20.0 |
| LY0003-0005 | GC2.5-3 | 3.2 | 3.9 | 2.3 | 8.0 | 7.0 | 17.0 |
| LY0003-0089 | A-GC400-20 | 20.9 | 35.0 | 27.0 | 49.0 | 44.0 | 104.0 |
Additional Information
- Working Temperature: -55°C to 150°C
- Material: T2 Copper with Tin Coating
- Suitable for power cable connections
- Quality Certifications: CE, UL, JIS, DIN, AWG
