Description

The GCL Gear Trolleys and Plan Trolley are essential tools for efficient lifting and transporting in various industrial environments. Designed for safety and ease of use, the geared trolley operates by pulling a hand chain, while the plain trolley is pushed to lift loads, seamlessly running on the bottom flange of a monorail system. This innovative design allows for versatile movement, whether in straight lines or curves, making it ideal for installation and maintenance tasks in plants, docks, warehouses, and power rooms, particularly in areas without power availability.

Key features include:

• Safe Operation: Ensures user safety with straightforward handling.
• Compact Design: Features a minimal installation dimension and adjustable flange distance to accommodate various monorails.
• Efficient Performance: Engineered with roll bearings, the wheels require minimal force to operate effectively.
• Versatile Movement: Special wheel hub surfaces allow for operation on flat and inclined surfaces up to a 1:6 gradient.
• Curved Path Capability: Designed with flanged wheels to navigate small-radius curved l-beams.

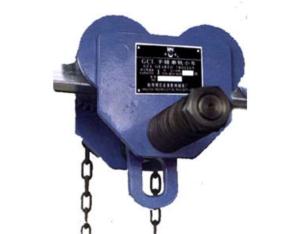

The Geared Trolley consists of quality components including left and right plates, a hanger beam, and a hanger plate, all meticulously assembled to ensure durability and performance. The hand chain mechanism drives the trolley smoothly along I-beams, while the plain trolley allows for efficient towing and pushing of loads.

Specifications

Additional Information

To accommodate different I-beam widths, the wheel distance can be adjusted using washers placed inside or outside the plates. For geared trolleys, only one washer is needed at the outside of the plate, simplifying the setup process.
