Description

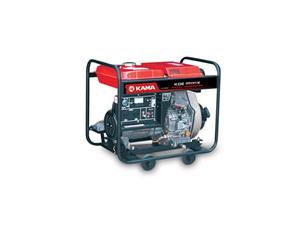

The KDE6500X generator is a robust and reliable power solution designed for various applications, from home backup to construction sites. Featuring a powerful single-cylinder, 4-stroke diesel engine, this generator ensures efficient operation with a rated output power of up to 5.2 kW. It offers a steady and consistent voltage supply, making it ideal for running essential appliances and tools.
Built with durability in mind, the KDE6500X boasts an open-frame structure that enhances portability while minimizing weight. Its low oil pressure alert system ensures safe operation, and the self-excitation and constant voltage (AVR) feature maintains steady performance under varying loads. With noise levels between 74-77 dB(A) at 7 meters, it operates relatively quietly, allowing for convenient use in residential areas.
Specifications
| Attribute | Value |
|---|---|
| Rated frequency (Hz) | 50/60 |
| Rated voltage (V) | 230/115 |
| Rated current (A) | 20/22.6/45.2 |
| Rated output power (kW) | 4.6/5.2 |
| Rated rotation speed (rpm) | 3000/3600 |
| DC output | 12V 8.3A |
| Power factor (cos) | 1.0 |
| Phase number | Single phase |
| Noise level [dB(A) @ 7m] | 74~77 |
| Overall dimension (L*W*H) [mm(in)] | 720x492x650 (28.35×19.37×25.59) |
| Dry weight [kg (lbs)] | 100 (220) |
| Structure type | Open-frame type |
| Coupling mode | Transmission shaft rigid coupling |
| Engine model | KM186FAE |
| Engine type | Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine |
| Displacement [ml (cu.in)] | 418 (25.51) |
| Compression ratio | 19:1 |
| Rated power [kW (Hp)/rpm] | 5.9 (8.02)/3000, 6.5 (8.84)/3600 |
| Starting system | Recoil starter |
| Rotation direction (View from flywheel) | Clockwise |
| Fuel | 0# (summer), -10# (winter) light diesel oil |
| Lube | SAE10W30 (above CC grade) |
| Low oil pressure alert system | With |
| Excitation mode | Self-excitation and constant voltage (AVR) |
Additional Information
- Ideal for residential and commercial use.
- Designed for ease of operation and maintenance.
- Recommended for users seeking a reliable power backup solution.
