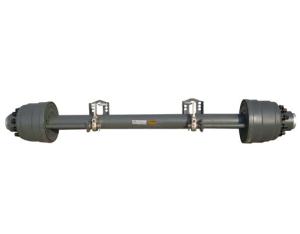

German Style Axle
Inquire NowDescription
The German Style Axle is engineered to deliver superior performance and reliability for a variety of applications. Known for its robust construction and precision design, this axle is ideal for heavy-duty use in transportation and logistics. The axle is available in multiple capacities, ensuring it meets different load requirements with ease. Its thoughtful design also includes specific dimensions and features tailored to enhance operational efficiency. With a focus on durability and performance, the German Style Axle is the go-to choice for professionals in need of a dependable solution.
Specifications
| Axle Type | Max. Capacity (T) | Track L2 (mm) | Brake (mm) | Centre Distance Of Spring Seat L3 (mm) | Axle Beam (mm) | Centre Distance Of Brake Chamber L4 (mm) | Wheel Fixing – Stud | Wheel Fixing – D1 P.C.D (mm) | Wheel Fixing – Hole Diameter D2 (mm) | Total Length L1 (mm) | Recommended Wheel | Axle Weight (kg) | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BYF-12 | 12 | 1840 | 420*180 | ≥980 | 150*150 | 420 | 10*M22*1.5 | 335 | 281 | 2156 | 7.5V-20 | ≈372 | Bearing(Inner)33118 Bearing(Outer)33213 |
| BYF-14 | 14 | 1840 | 420*180 | ≥980 | 150*150 | 420 | 10*M22*1.5 | 335 | 281 | 2188 | 7.5V-20 | ≈402 | Bearing(Inner)33219 Bearing(Outer)33215 |
| BYF-16 | 16 | 1850 | 420*220 | ≥900 | 150*150 | 356 | 10*M22*1.5 | 335 | 281 | 2242 | 7.5V-20 | ≈468 | Bearing(Inner)33314 Bearing(Outer)32222 |
Additional Information
- Recommended for heavy-duty transport applications.
- Ensure proper installation by following the manufacturer’s guidelines.
- Regular maintenance is advised to prolong the life of the axle.
