GI/GL-Galvanized/ Galvalume line
Inquire NowDescription
The GI/GL-Galvanized/Galvalume line is an advanced production system designed to provide high-quality galvanized steel products. Utilizing the United States Steel Hot-dip Galvanizing process, this line ensures that the steel is indirectly heated using full-radiation pipes for optimal coating quality. The innovative cooling system employs protection gas cycling jetting, allowing for rapid and uniform cooling of the strip, which guarantees the ideal temperature before entering the zinc pot. Real-time monitoring of cladding weight is achieved through a sophisticated thickness gauge, ensuring precise adjustments to the air knife for consistent product quality. This line features a motorized air knife with frequency speed regulation, providing the capability to maintain even cladding thickness and superior surface finish.
Specifications
| Attribute | Details |
|---|---|
| Raw Material | SPCC, SPCD etc low-carbon and low silicon cold rolled coils, without annealing and surface treatment |
| Strip Width | 550-1350mm |
| Strip Thickness | 0.15-1.5mm |
| Zinc Coating Weight | 15-600g/m² (Two sides) |
| Line Speed | Max. 200mpm |
| Production Capacity | 80,000-300,000 tons/year |

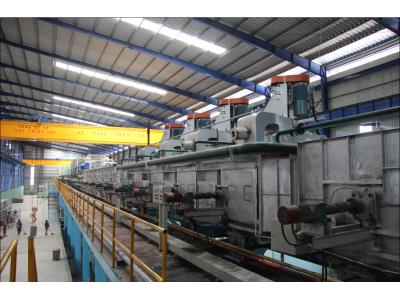

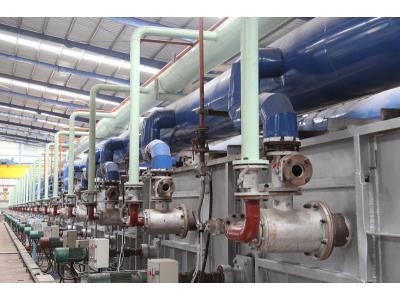

| Annealing Furnace | Full radiation pipes, vertical or horizontal type; NOF non-oxidative direct fired furnace |
| Line Features | Utilizes the United States Steel Hot-dip Galvanizing process; includes advanced cooling and monitoring systems for optimal cladding quality. |
Additional Information
- Utilizes innovative cooling technology for improved efficiency.
- High precision control for consistent product quality.
