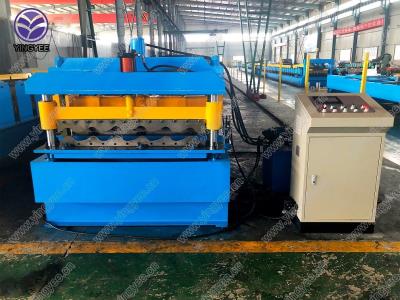

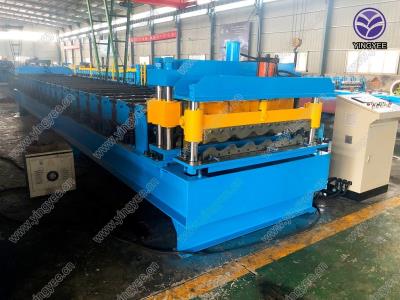

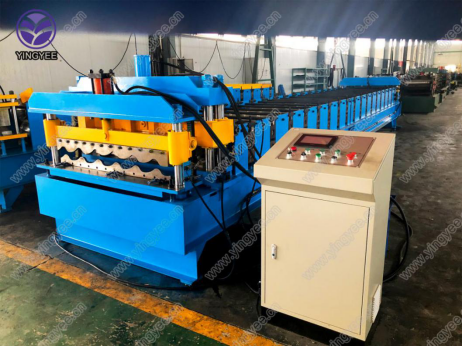

glazed tile roof sheet roll forming machine 02

Inquire Now

Description

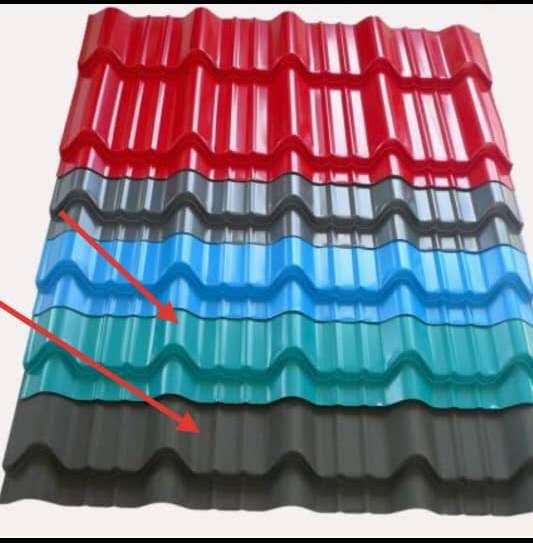

Introducing the Glazed Tile Roof Sheet Roll Forming Machine 02, a high-performance equipment designed for producing durable and aesthetically pleasing glazed roof tiles. This machine is engineered to handle various material thicknesses, ensuring versatility in production. With its robust construction and advanced technology, it guarantees efficiency and precision in creating roof sheets that meet modern architectural standards.

Specifications

Feature Details
Material Thickness Range 0.2 – 0.8 mm
Main Motor Power 5.5 kW
Hydraulic Station 4 kW
Speed 3 m/min (includes punching and cutting)
Quantity of Rollers 16
Material of Rollers 45# with chromed finish
Shaft Material and Diameter ￠75 mm, 45# forge steel
Body of Machine 350H
Tolerance 10 m ± 1.5 mm
Way of Drive Chain / Gearbox
Control System PLC
Material of Cutter Blade Cr12 mould steel with quenched treatment (58-62℃)
Voltage 380V / 3 phase / 50 Hz
Machine Size Length: 8-9 m
Weight 10 tons

Additional Information

  • The machine is designed for easy operation and maintenance.
  • Ideal for manufacturers looking to produce high-quality glazed roof sheets.
