GPH Cable Lugs
Inquire NowDescription

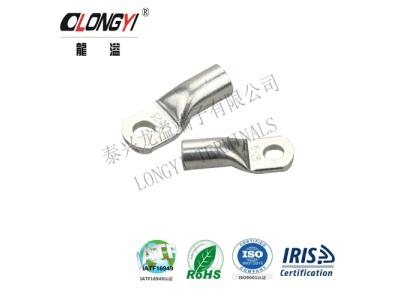

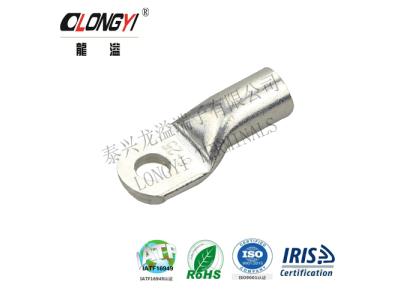

GPH Cable Lugs are expertly designed connectors ideal for establishing secure connections of copper conductors ranging from 1.5 to 400mm² in power cables with electronic equipment. Constructed from 99.99% pure copper tube T2 and coated with tin, these lugs ensure excellent conductivity and durability. They can withstand extreme temperatures from -55°C to 150°C, making them suitable for various industrial applications. The GPH Cable Lugs provide reliability and efficiency, making them an essential component for electrical installations.
Specifications
| PART NO | ITEM NO | φE | C | A | D | B | L |
|---|---|---|---|---|---|---|---|
| LY0011-0001 | GPH1.5-3 | 3.2 | 3.3 | 1.8 | 6.5 | 6.0 | 15.5 |
| GPH1.5-4 | 4.3 | 3.3 | 1.8 | 6.5 | 6.0 | 17.5 | |
| GPH1.5-5 | 5.3 | 3.3 | 1.8 | 9.0 | 6.0 | 19.0 | |
| GPH1.5-6 | 6.4 | 3.3 | 1.8 | 9.5 | 6.0 | 22.5 | |
| GPH2.5-4 | 4.3 | 4.2 | 2.2 | 7.5 | 6.0 | 17.1 |
Additional Information
No additional information available.
